EXPANSION JOINTS
Steel Expansion Joints
PRODUCT OVERVIEW
Steel
Expansion Joints

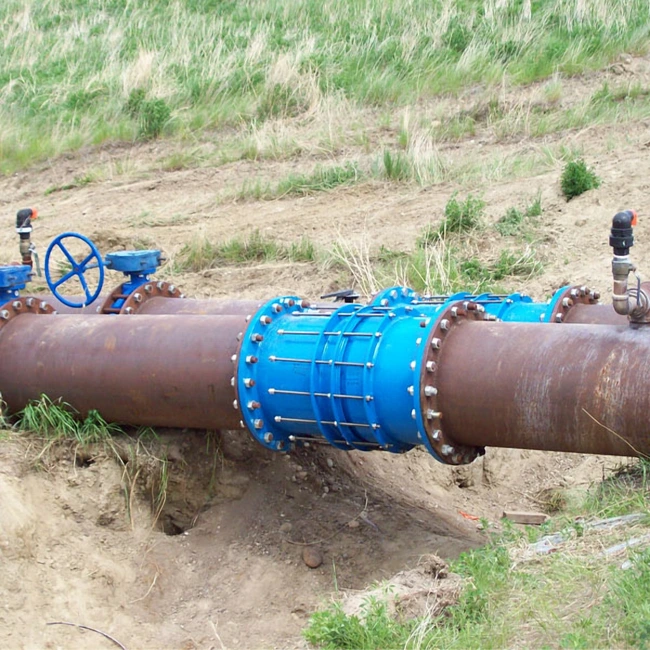

Robar Expansion Joints are used in steel pipelines where large longitudinal pipe movements are concentrated. Used for piping water, gas, oil and various chemicals.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

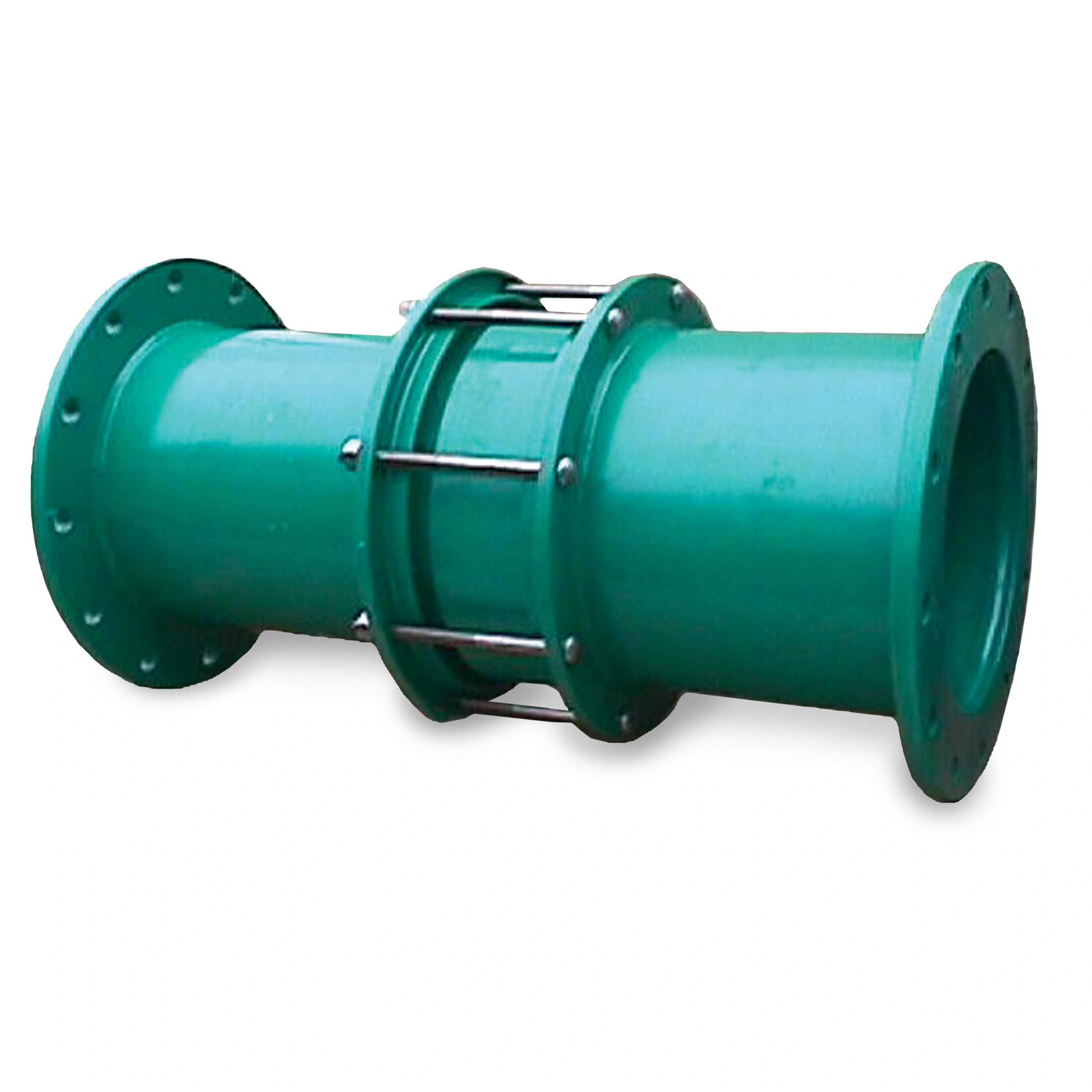

Steel Expansion Joints
Robar Expansion Joints are used in steel pipelines where large longitudinal pipe movements are concentrated. Used for piping water, gas, oil and various chemicals.
Material Specifications:
Flanges & Body: Carbon Steel ASTM A36
Slip Pipe: Stainless steel or Chrome plated steel
Fasteners: 5/8″ T-316 Stainless Steel bolts.
Packing: SBR rubber / Jute
Coating: Corrosion Protective Epoxy
