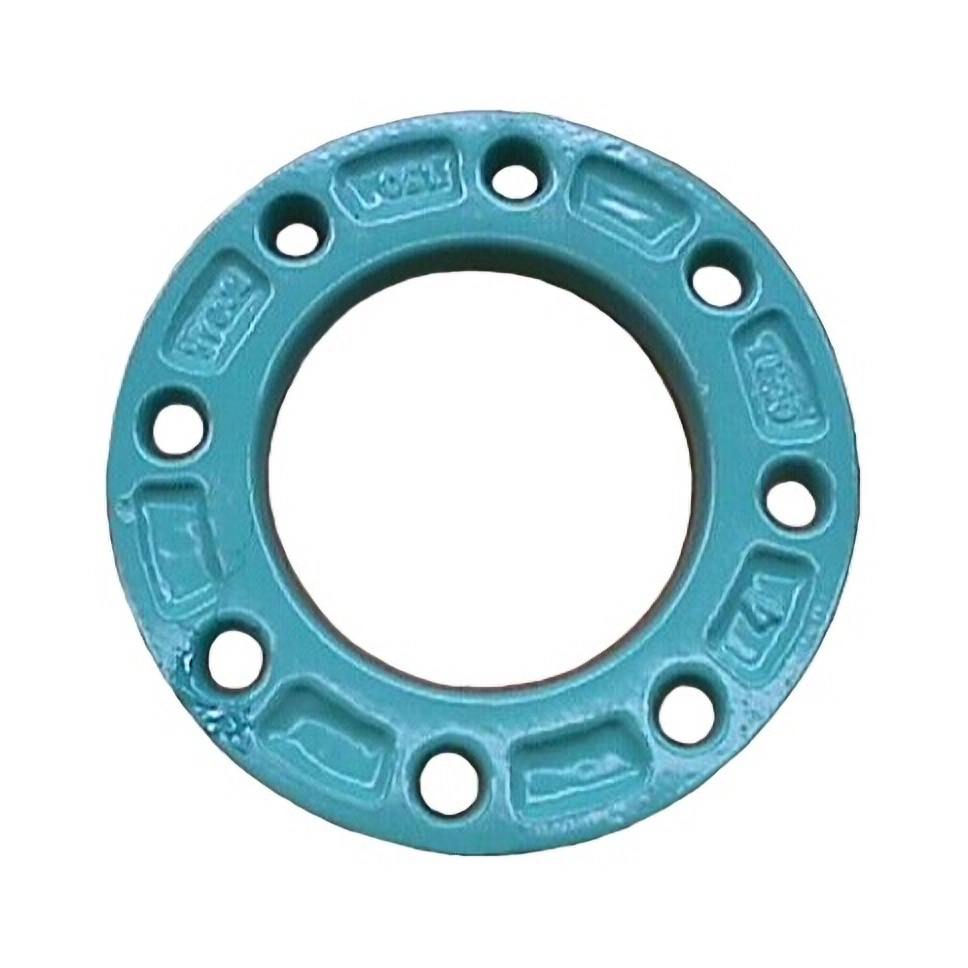

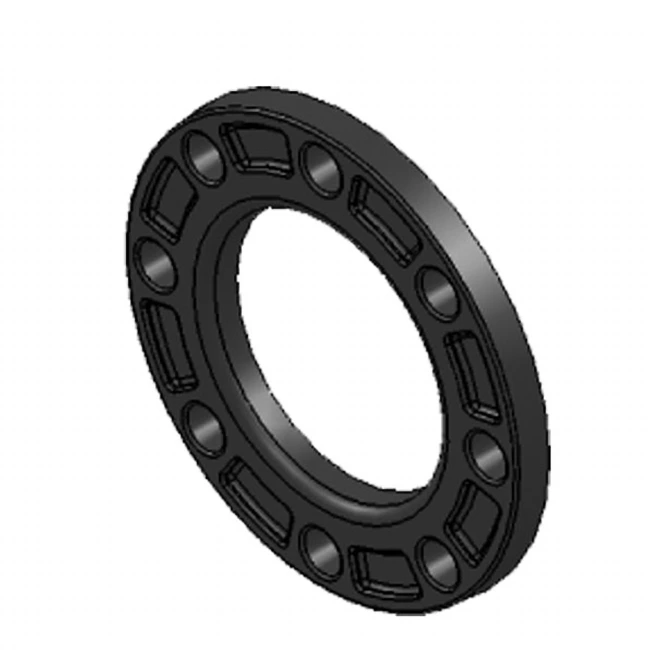

9500 ICL Back-up Flange
PRODUCT OVERVIEW
9500
Miscellaneous
Robar 9500 FRP Back-up Flanges are used to couple fiberglass pipes. Typically suited for lines with corrosive chemicals. The flanges conform to ASA B16.5 standard with a 150 pound bolt pattern.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
9500 ICL Back-up Flange
Robar 9500 FRP Back-up Flanges are used to couple fiberglass pipes. Typically suited for lines with corrosive chemicals. The flanges conform to ASA B16.5 standard with a 150 pound bolt pattern.
MATERIAL SPECIFICATIONS:
Body: Cast Ductile Iron per ASTM A536 standard.
Coating: Fusion bonded epoxy coated per AWWA C-213 standard.
Pressure: Up to 150 PSI working pressure.
Sizes Available: 1”– 24”
