MISCELLANEOUS
Pipe Support Cradle & Flange Support Stands
ROBARPipe
2754 × 2754
PRODUCT OVERVIEW
Pipe
Miscellaneous
The Robar Pipe Support Cradle stand is available from 2” – 36”.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
Pipe Support Cradle & Flange Support Stands

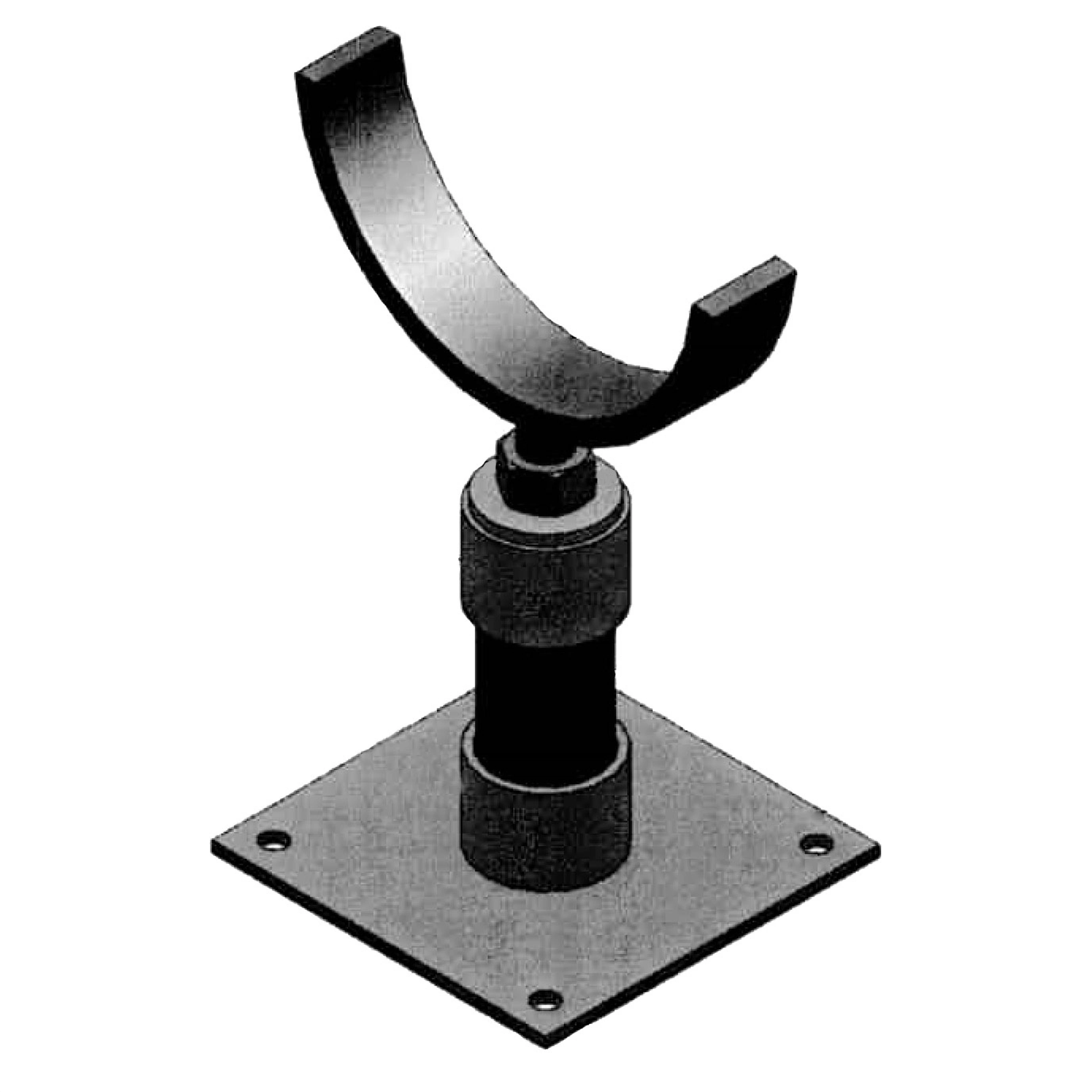

The Robar Pipe Support Cradle stand is available from 2” – 36”.

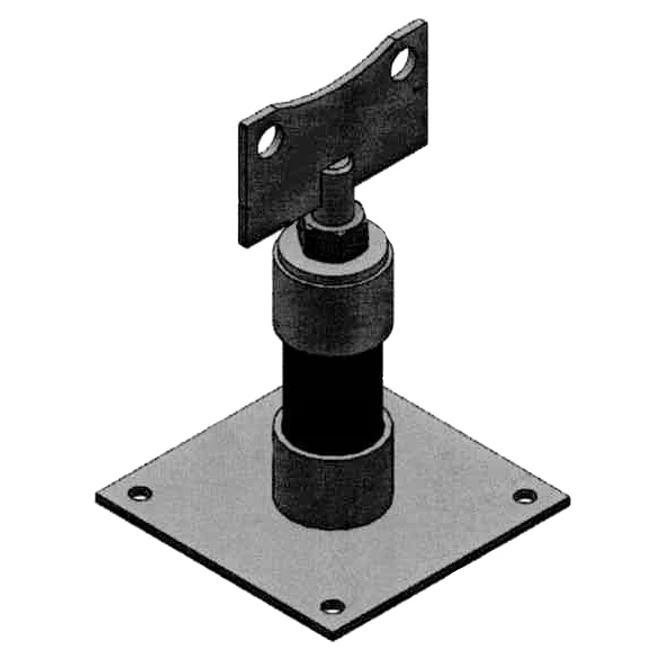

The Robar Flange Support stand is available from 3″ – 24″.
MATERIAL SPECIFICATIONS:
Base Plate: ASTM A36 Carbon Steel
Sleeve: ASTM A53 ERW Tubing
Stud: ASTM A36, Rolled Thread
Coating: Hot Dip Galvanized
