TAPPING SLEEVES

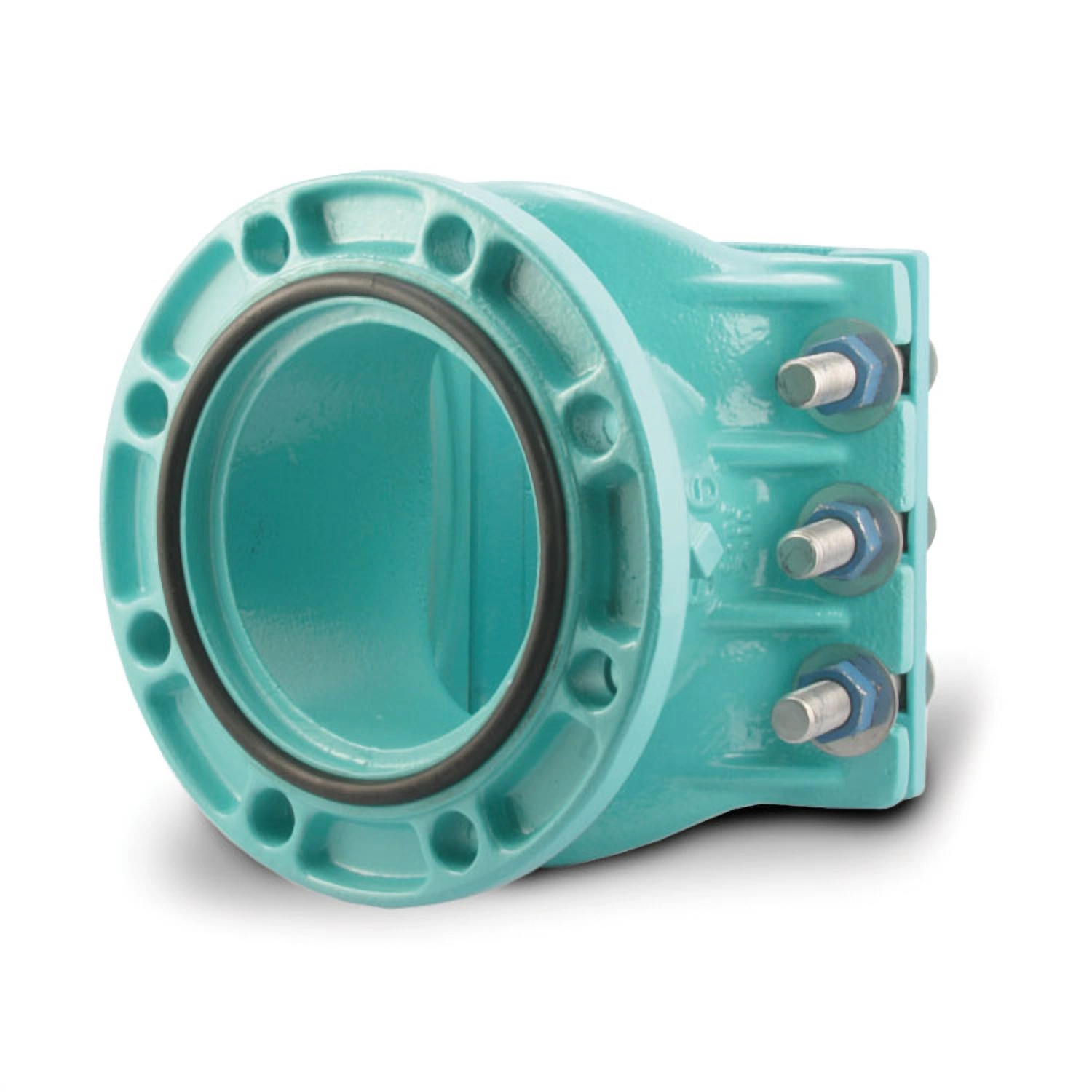

Cast Ductile Iron Tapping Sleeve
PRODUCT OVERVIEW
Cast
Tapping Sleeves
ROBAR Cast Tapping Sleeve are used to make a branch outlet off a main supply line on ductile or cast iron pipes.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

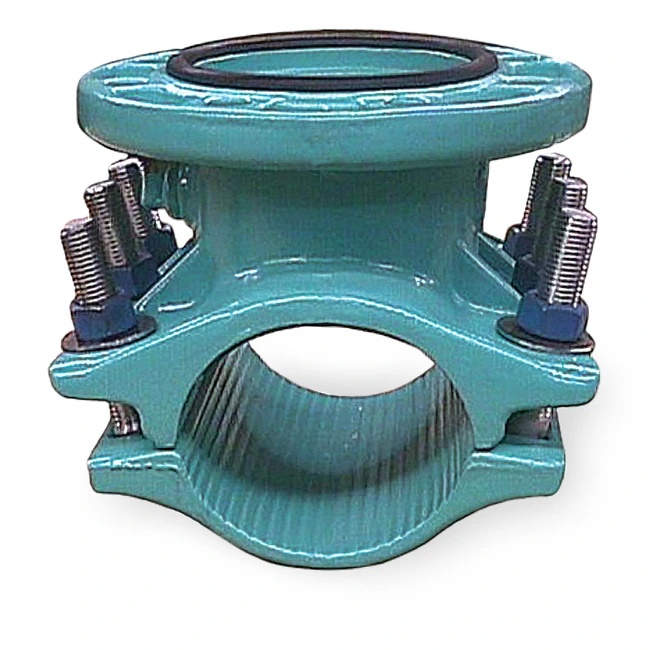

Cast Ductile Iron Tapping Sleeve
ROBAR Cast Tapping Sleeve are used to make a branch outlet off a main supply line on ductile or cast iron pipes.
MATERIAL SPECIFICATIONS:
Body: Cast Ductile Iron
Flange: Cast Ductile Iron, 150lb drilling
Gaskets: NBR (Nitrile) Rubber (Other compounds available)
Fasteners: 6508 – 3/4″NC Mild Steel Bolts
6506 – 3/4” NC T304 Stainless Steel (T-316 available)
Nuts coated with anti-galling compound
Torque: 70-80 ft-lbs.
Test Plug: 3/4″ NPT Mild Steel
Coating: Corrosion Protective Epoxy coating
Working pressures up to 250 PSI.
