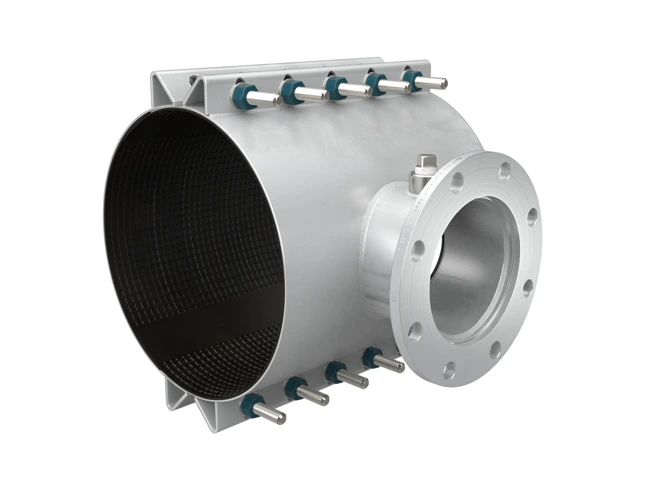

6606 Stainless Steel Tapping Sleeve
PRODUCT OVERVIEW
6606
Tapping Sleeves
The ROBAR 6606 Series Tapping Sleeves are used for “WET” or “DRY” tapping. Available for pipe diameters from 4” to 24”. Outlet options: 4” to 12”. Larger nominal sizes and/or larger flange sizes available upon request. Not for use on Concrete Cylinder pipe.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

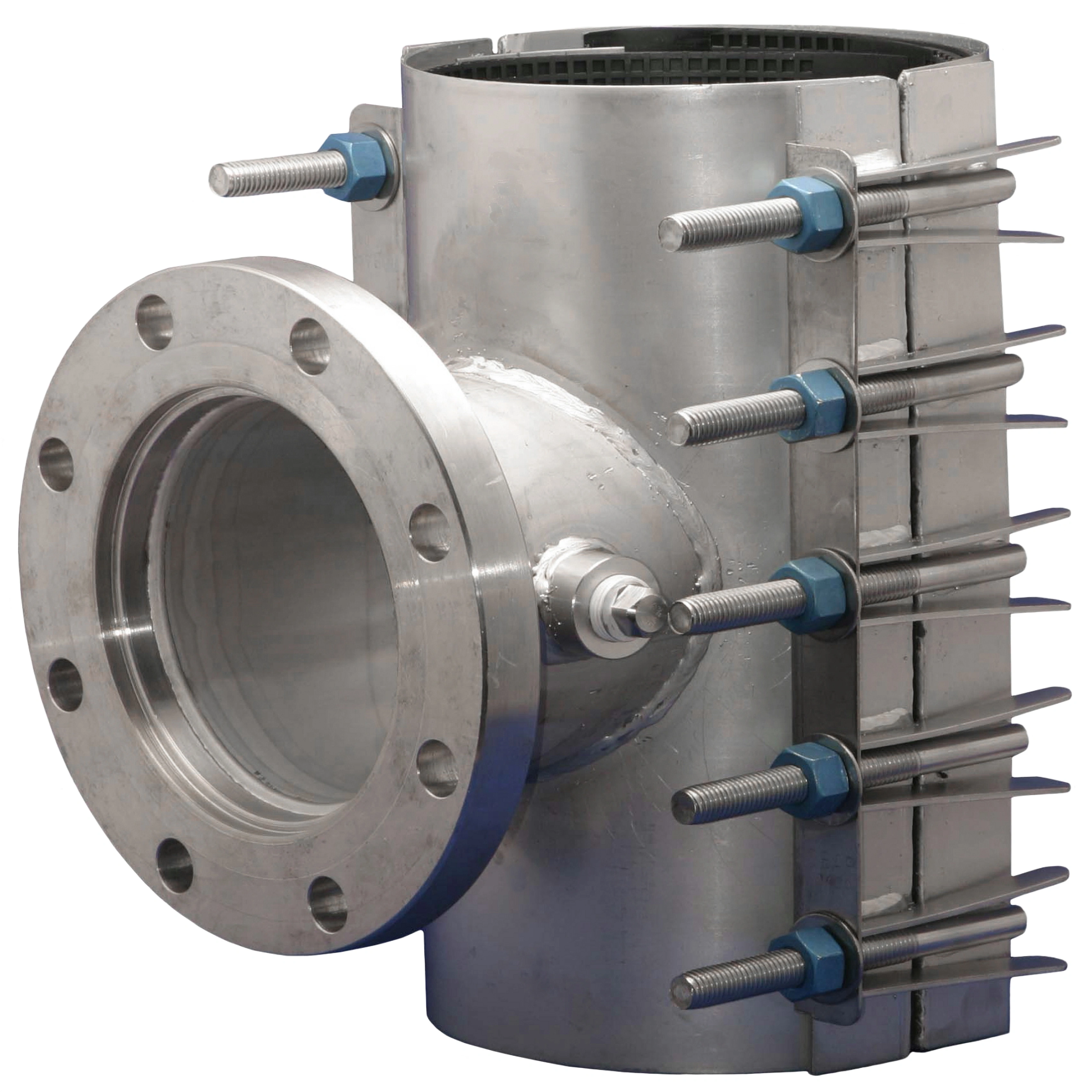

6606 Stainless Steel Tapping Sleeve
The ROBAR 6606 Series Tapping Sleeves are used for “WET” or “DRY” tapping. Available for pipe diameters from 4” to 24”. Outlet options: 4” to 12”. Larger nominal sizes and/or larger flange sizes available upon request. Not for use on Concrete Cylinder pipe.
MATERIAL SPECIFICATIONS:
Shell: T-304 Stainless Steel, fully passivated*.
Fasteners: 5/8” NC T304 Stainless Steel. Nuts coated with anti-galling compound.
Torque: 70-80 ft. lbs.
Gaskets: Ringseal & Liner: NBR (Buna N) Rubber. Full wrap around.
Test Plug: 3/4” NPT Stainless Steel.
Flange: T-304 Stainless Steel*, as per AWWA C-207 Class D. (Carbon Steel, Epoxy coated Flange available)
Outlet Pipe: T-304 Stainless Steel, fully passivated*.
