TAPPING SLEEVES

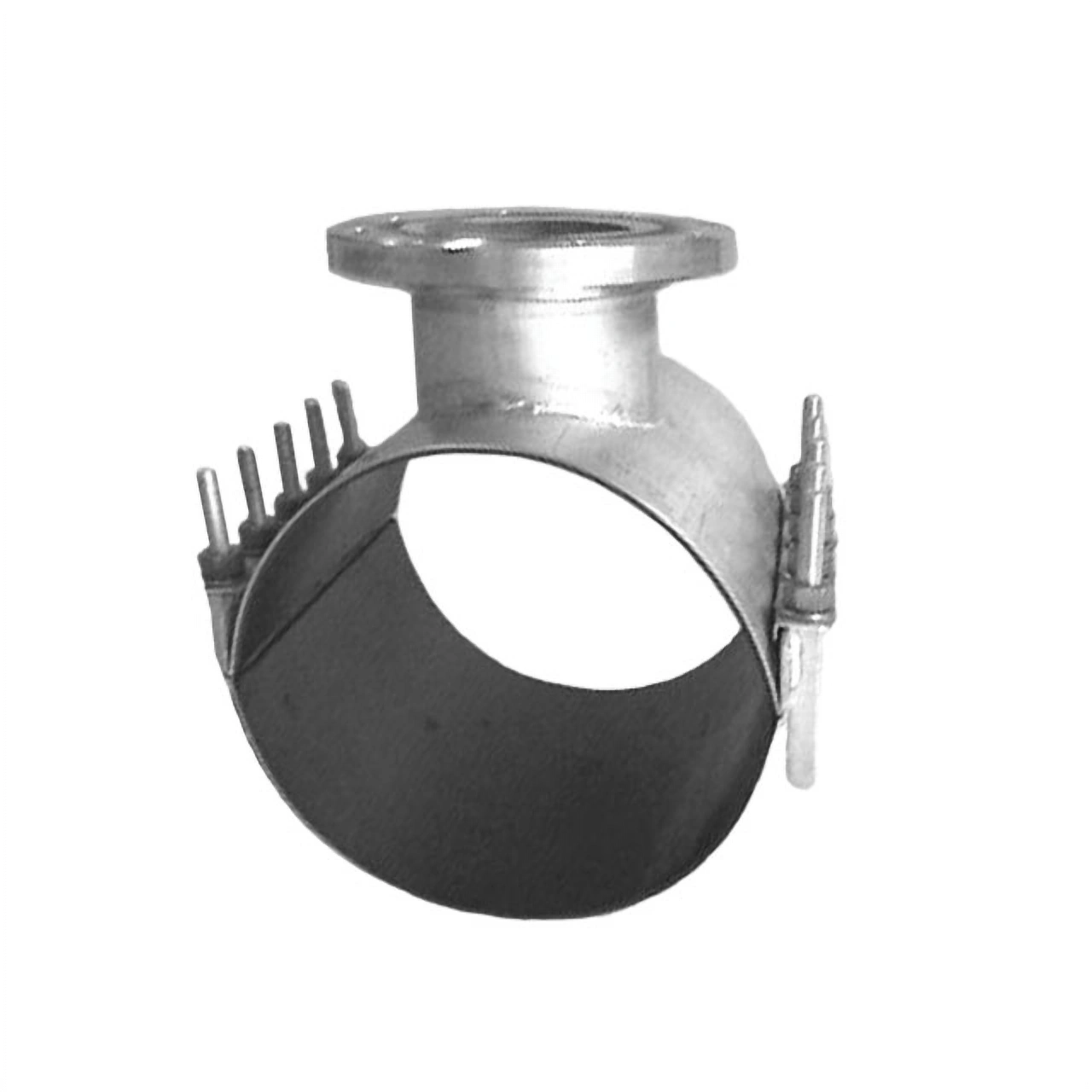

6626 Outlet Sleeve
PRODUCT OVERVIEW
6626
Tapping Sleeves
The ROBAR 6626 Outlet Sleeves are used for “DRY” tapping applications. Available for pipe diameters from 4” to 24”. Outlet options: 3” to 12”. Larger nominal sizes and/or larger flange sizes available upon request. Not for use on Concrete Cylinder pipe.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
6626 Outlet Sleeve
The ROBAR 6626 Outlet Sleeves are used for “DRY” tapping applications. Available for pipe diameters from 4” to 24”. Outlet options: 3” to 12”. Larger nominal sizes and/or larger flange sizes available upon request. Not for use on Concrete Cylinder pipe.
MATERIAL SPECIFICATIONS:
Shell: T-304 Stainless Steel, fully passivated*.
Fasteners: 5/8” NC T304 Stainless Steel. Nuts coated with anti-galling compound.
Torque: 70-80 ft. lbs.
Gaskets: Ringseal: NBR (Buna N) Rubber. Liner: SBR (Buna S) Rubber
Flange: T-304 Stainless Steel*, as per AWWA C-207 Class D.
Outlet Pipe: T-304 Stainless Steel, fully passivated*.
Working Pressure – 175PSI
