TAPPING SLEEVES
6636 Abandon Service Sleeve
PRODUCT OVERVIEW
6636
Tapping Sleeves

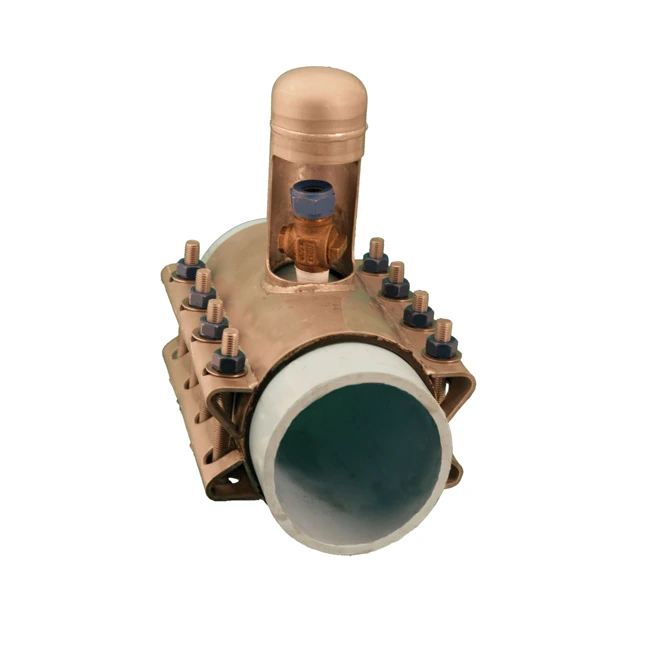

ROBAR 6636AS Abandon Service Sleeves are used to seal off abandoned or decommissioned 3/4” through 2” main stops. Allows for no disruption in water service. No re-chlorination of lines due to atmospheric exposure. Simply install over existing main stop. Available in bolt bracket style or lifter bar style.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

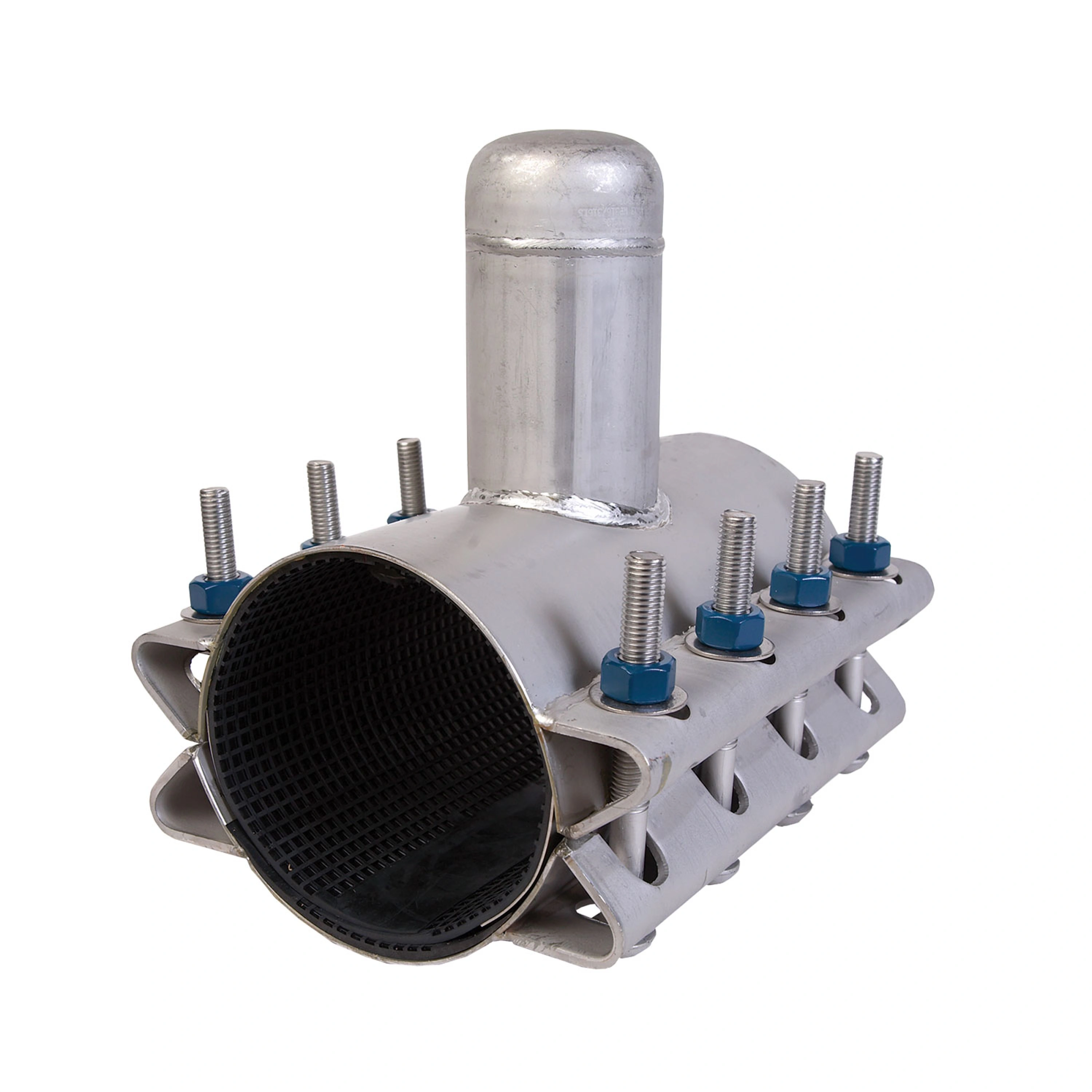

6636 Abandon Service Sleeve
ROBAR 6636AS Abandon Service Sleeves are used to seal off abandoned or decommissioned 3/4” through 2” main stops. Allows for no disruption in water service. No re-chlorination of lines due to atmospheric exposure. Simply install over existing main stop. Available in bolt bracket style or lifter bar style.
MATERIAL SPECIFICATIONS:
Shell: T304 Stainless Steel, fully passivated.
Fasteners: 5/8” NC T304 Stainless Steel. Nuts coated with anti-galling compound. Torque is 70-80 ft. lbs.
Gaskets: Ringseal & Liner: NBR (Buna N) Rubber. Full wrap around.
Outlet Pipe: T304 Stainless Steel, fully passivated.
Outlet Size: 3” outlet size is used to cap 3/4” & 1” main stops. With a 3” outlet you have the option of having the fitting length 8” or 12”. 4” outlet size is used to cap 1-1/4” – 2” main stops.
With a 4” outlet the standard fitting length is 12”.
