TAPPING SLEEVES

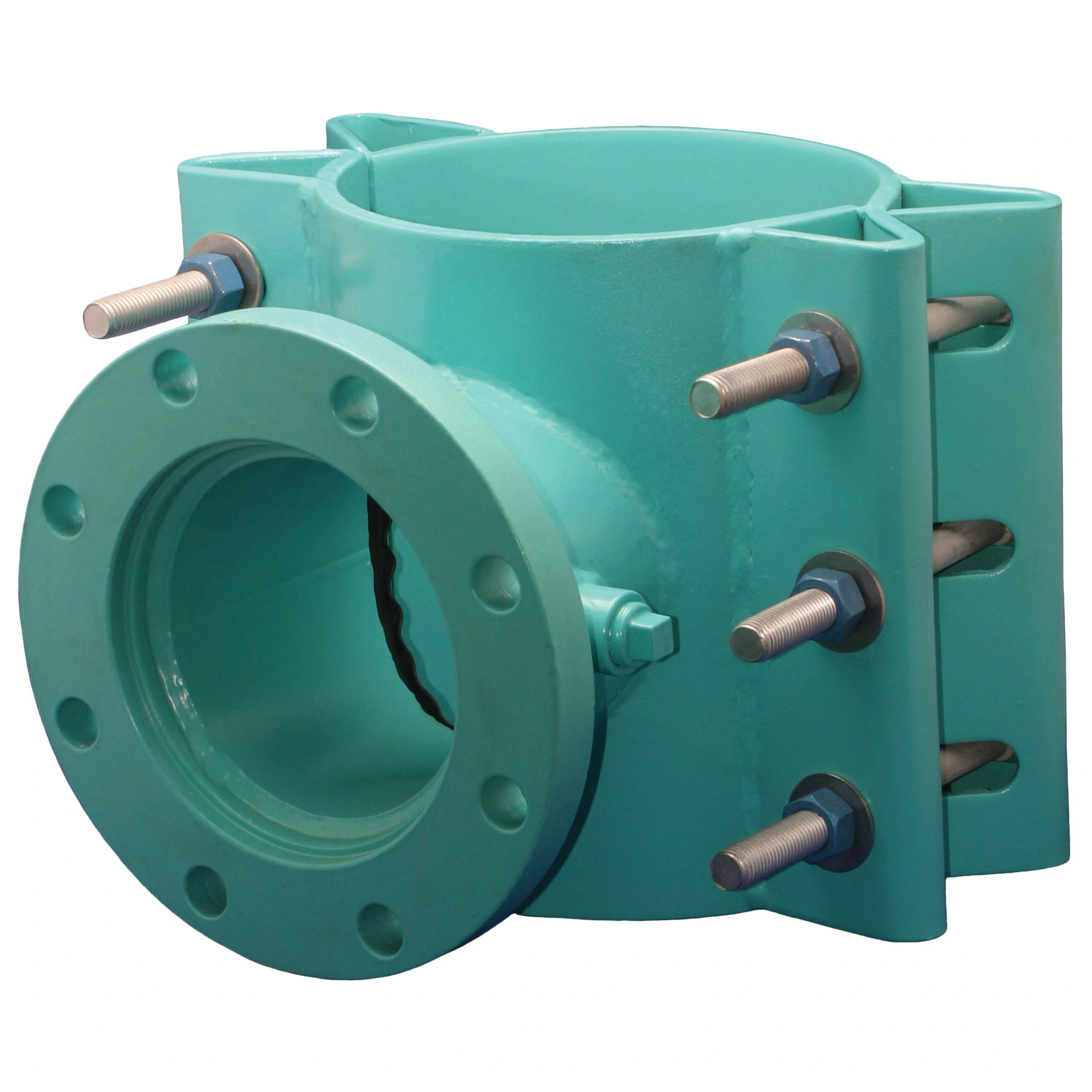

Carbon Steel Tapping Sleeve
PRODUCT OVERVIEW
Carbon
Tapping Sleeves
ROBAR 6906/6908 Tapping Sleeves are used to make a branch outlet off a main supply line on Steel, Ductile Iron, Cast Iron, Asbestos Cement, C900 and HDPE with an SDR number 17 and less (13.5, 11 & 9). Not for use on Concrete Pressure Pipe.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
Carbon Steel Tapping Sleeve
ROBAR 6906/6908 Tapping Sleeves are used to make a branch outlet off a main supply line on Steel, Ductile Iron, Cast Iron, Asbestos Cement, C900 and HDPE with an SDR number 17 and less (13.5, 11 & 9). Not for use on Concrete Pressure Pipe.
MATERIAL SPECIFICATIONS:
Body: Shell: Carbon Steel
Outlet Pipe: Schedule 40 Carbon Steel or equivalent.
Flange: Carbon Steel as per AWWA C207 class D. Mechanical Joint flange available.
Fasteners: 6908 – 3/4” NC HSLA.
6906 – 3/4” NC T-304 Stainless Steel. Nuts coated with anti-galling compound. Torque is 80ft. lbs.
Gaskets: Nitrile (NBR) rubber.
Test Plug: 3/4” NPT Carbon Steel.
Coatings: 6908/6906 – Corrosion Protective Epoxy coating.
