TAPPING SLEEVES

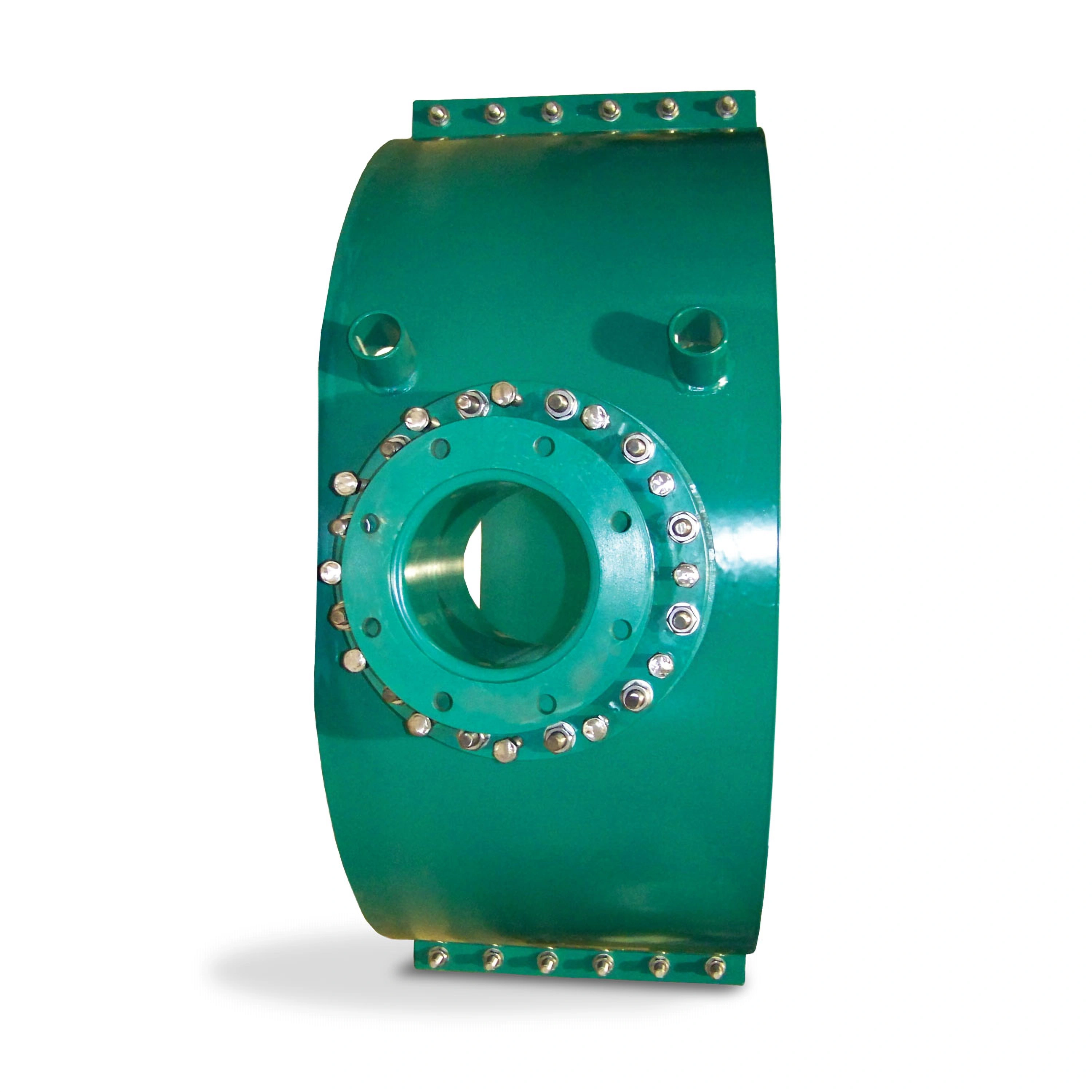

6996 Concrete Cylinder Tapping Sleeve
PRODUCT OVERVIEW
6996
Tapping Sleeves

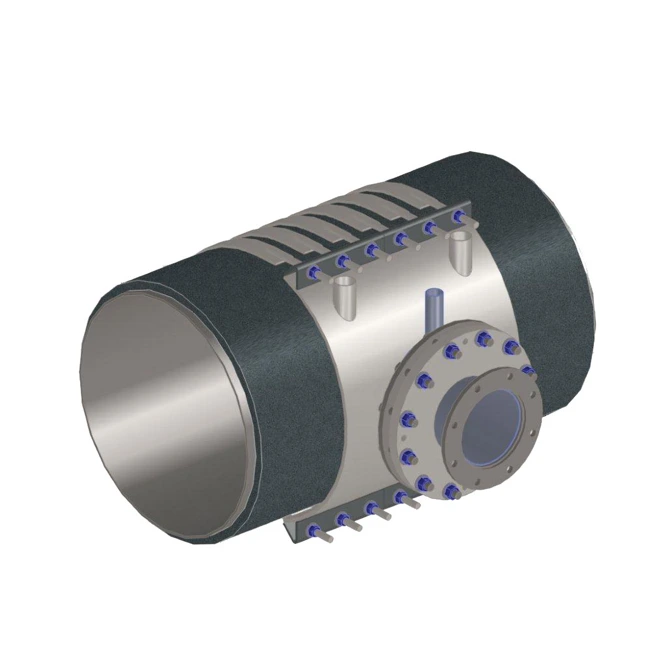

Robar Concrete Cylinder Pipe Tapping Sleeve are used to make a branch outlet off a main supply line on Concrete Cylinder Pipe.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
6996 Concrete Cylinder Tapping Sleeve
Robar Concrete Cylinder Pipe Tapping Sleeve are used to make a branch outlet off a main supply line on Concrete Cylinder Pipe.
MATERIALS
Carbon Steel per ASTM A36
Drilled and faced per ASTM or ANSI 150 lb standards.
FASTENERS
6998 ‐ 3/4″ NC HSLA Bolts & Nuts
6996 ‐ 3/4″ NC T‐304 Stainless Steel. Nuts coated with anti‐galling compound.
COATINGS
6998/6996 ‐ Fusion bonded epoxy coated per AWWA C‐213 standard.
Nitrile (NBR) rubber compound. Meets ASTM D2000 standard.
Other materials available on request.
