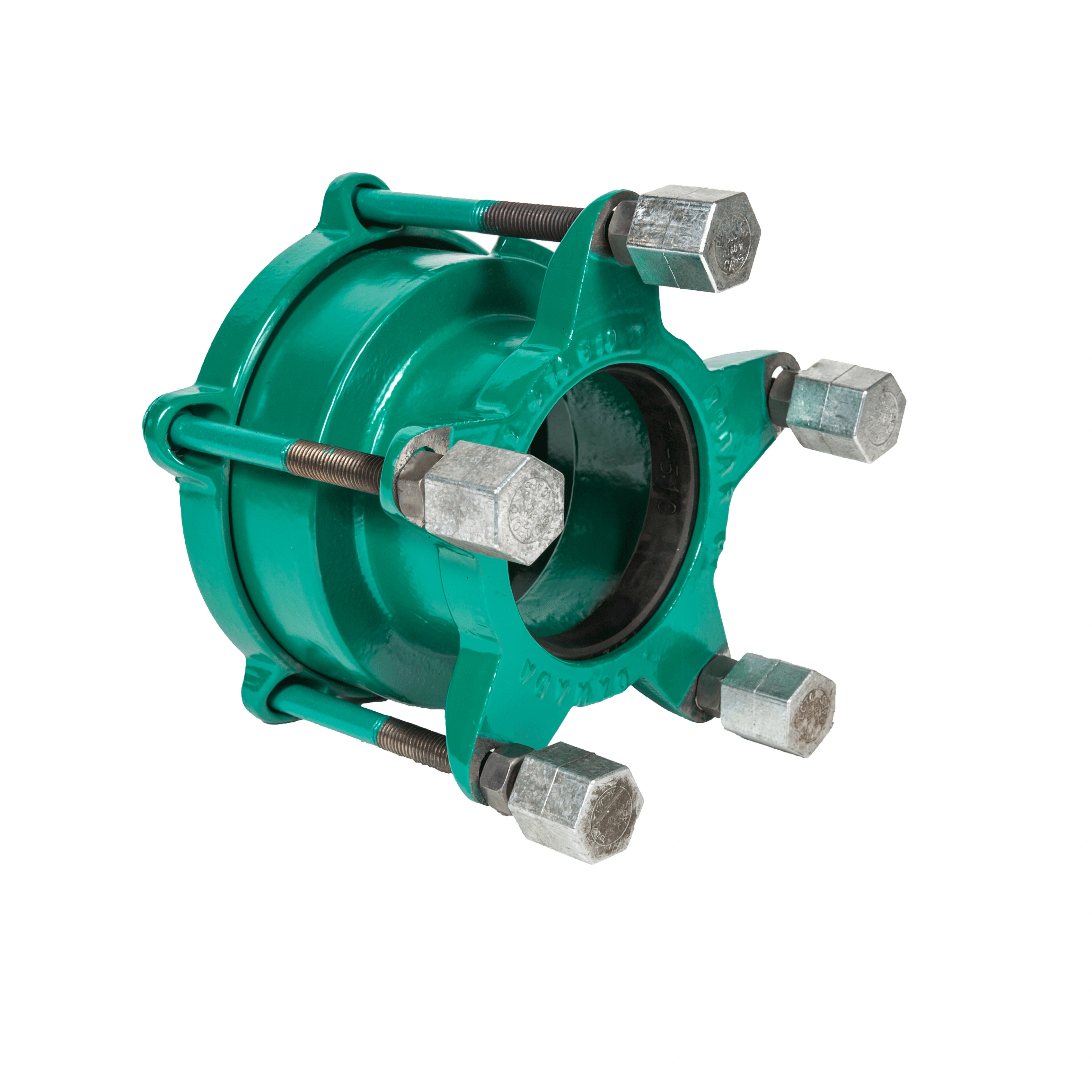

1507 & 1507R Cast Coupling with Anodes
PRODUCT OVERVIEW
1507
Couplings
ROBAR 1507 Straight and Transition Couplings are used to make a non-restrained connection between two pipes of the same nominal size but with same or different ODs. Used in areas where corrosion is a factor, the 1507 body and fasteners are Epoxy coated. Zinc anodes are supplied with this coupling.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
1507 & 1507R Cast Coupling with Anodes
ROBAR 1507 Straight and Transition Couplings are used to make a non-restrained connection between two pipes of the same nominal size but with same or different ODs. Used in areas where corrosion is a factor, the 1507 body and fasteners are Epoxy coated. Zinc anodes are supplied with this coupling.
ROBAR 1507R Reducing Couplings are used to make a connection between two pipes of different nominal sizes.
MATERIAL SPECIFICATIONS:
Center Sleeve: Cast Ductile Iron
End Rings: Cast Ductile Iron
Gaskets: Nitrile (NBR) Rubber (Other compounds available)
Fasteners: 5/8” NC HSLA Steel, Epoxy coated bolts
Torque: 70-80 ft. lbs.
Coating: Corrosion Protective Epoxy coating
Anodes: Zinc 300 grams minimum
Working pressures: 2″ through 12″ – 300 PSI
14″ through 24″ – 150 PSI
