1506/1506R Cast Coupling
PRODUCT OVERVIEW
1506/1506R
Couplings

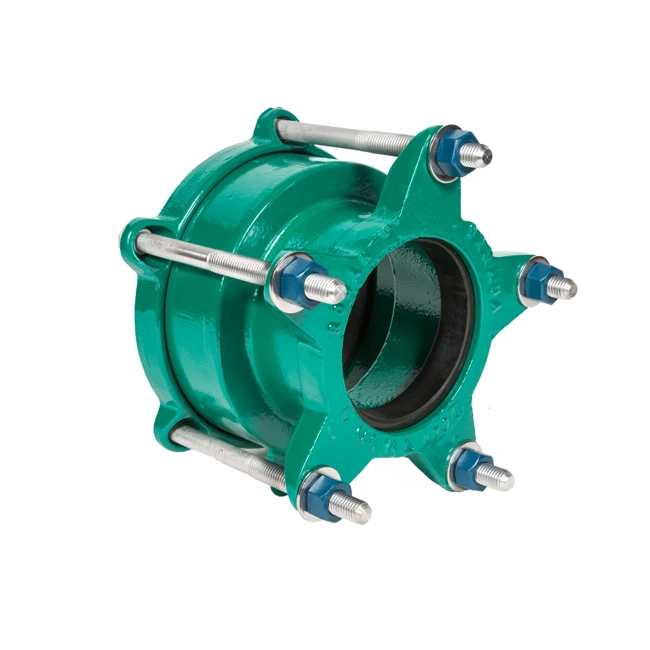

ROBAR 1506 Straight and Transition couplings are used to make a non-restrained connection between two pipes of the same nominal size but with same or different ODs. Used in areas where corrosion is a factor, the 1506 body is Epoxy coated with Stainless Steel fasteners.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
1506/1506R Cast Coupling

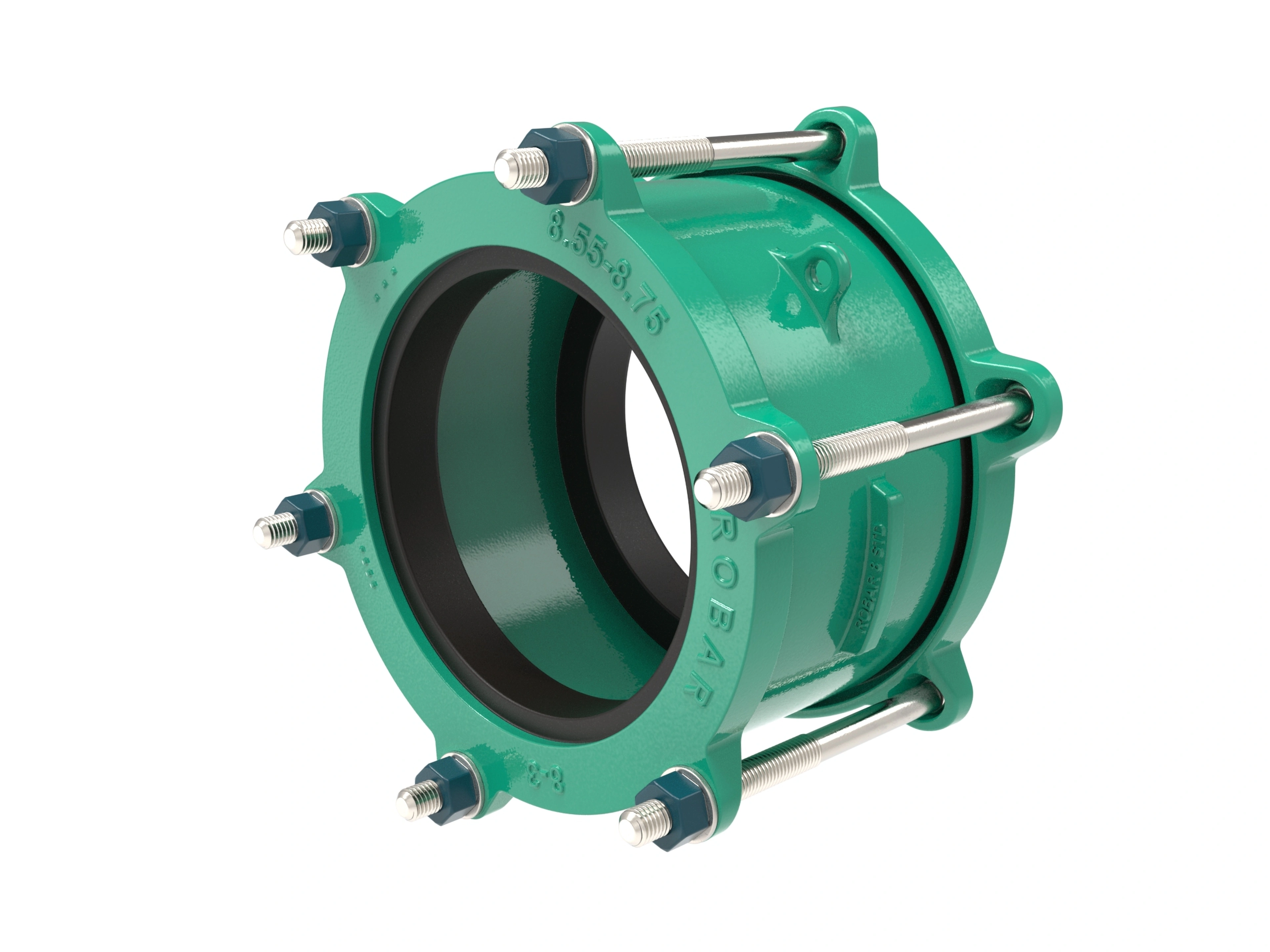

ROBAR 1506 Straight and Transition couplings are used to make a non-restrained connection between two pipes of the same nominal size but with same or different ODs. Used in areas where corrosion is a factor, the 1506 body is Epoxy coated with Stainless Steel fasteners.
ROBAR 1506R Reducing couplings are used to make a non-restrained connection between two pipes of the different nominal sizes. Used in areas where corrosion is a factor, the body is Epoxy coated with Stainless Steel fasteners.
MATERIAL SPECIFICATIONS:
Center Sleeve: Cast Ductile Iron
End Rings: Cast Ductile Iron
Gaskets: Nitrile (NBR) Rubber (Other compounds available)
Fasteners: 5/8” NC T304 Stainless Steel
Nuts coated with anti-galling compound
Torque: 70-80 ft. lbs.
Coating: Corrosion Protective Epoxy coating
Working pressures : 2″ through 12″ – 300 PSI
14″ through 24″ – 150 PSI
