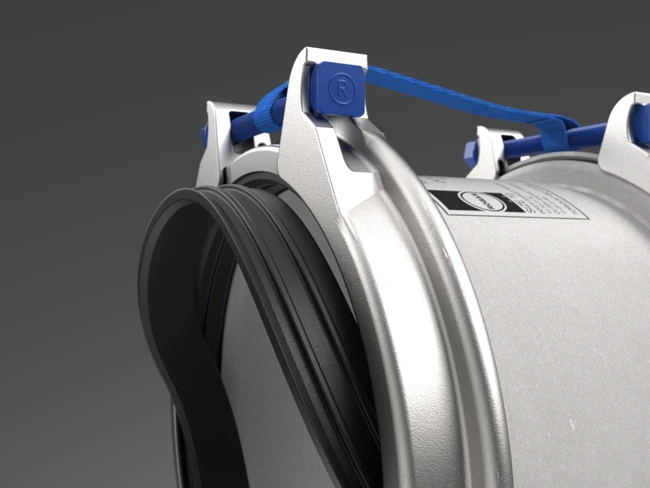

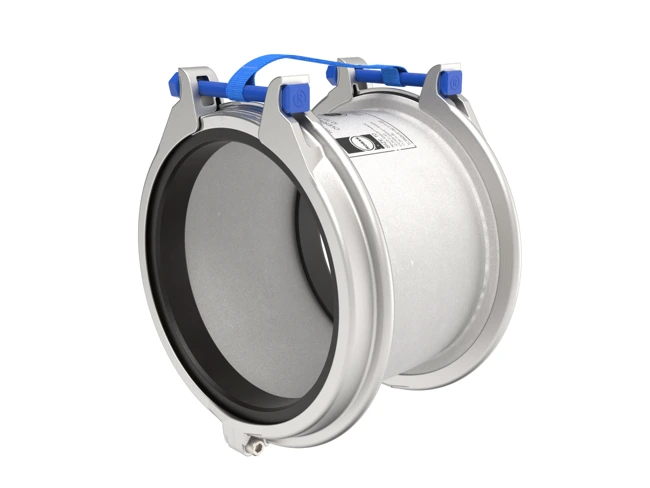

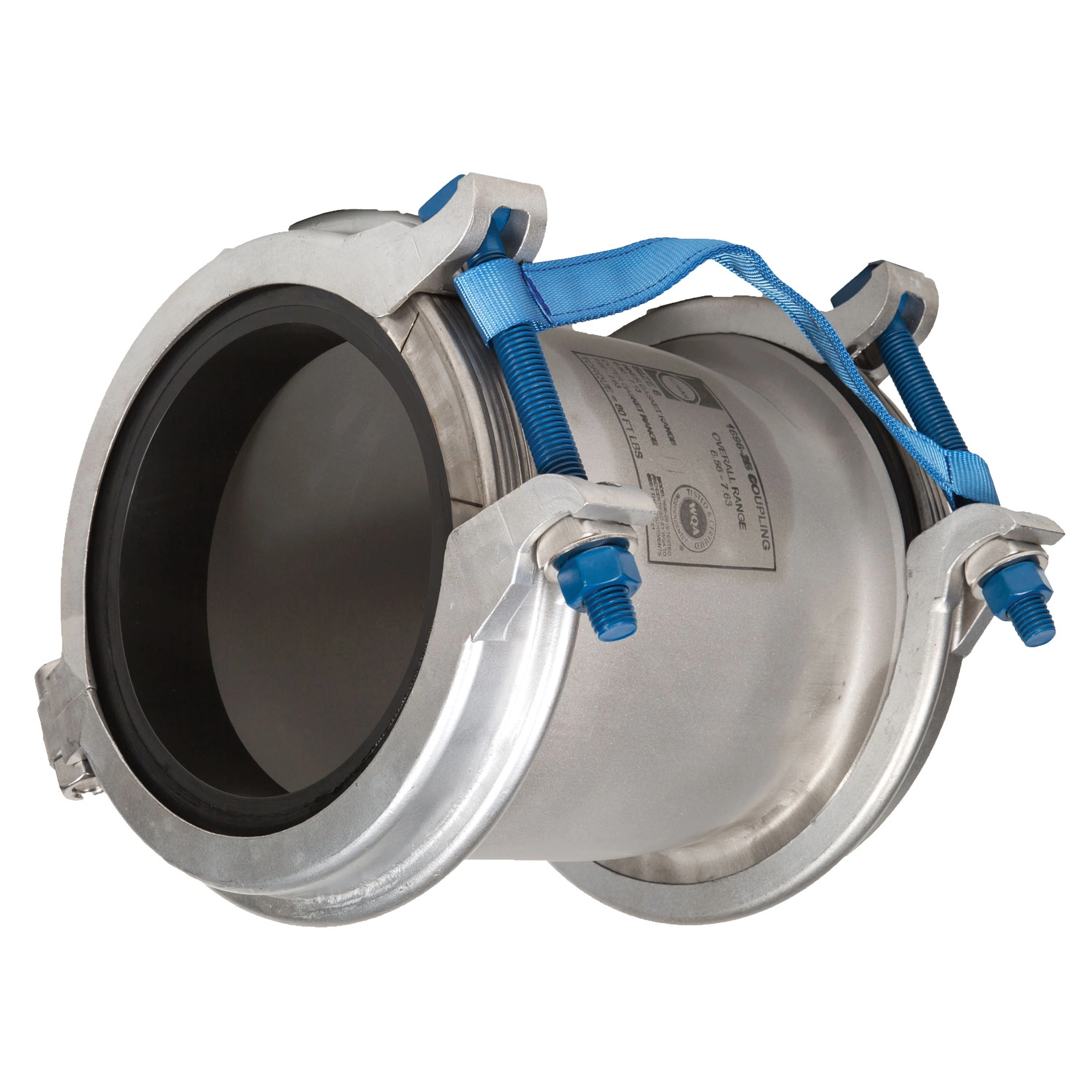

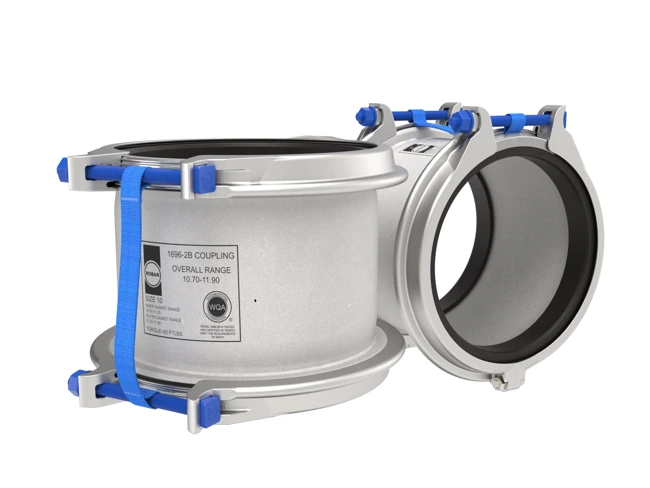

1696-2B Two Bolt Stainless Steel Coupling
PRODUCT OVERVIEW
1696-2B
Couplings
The NEW ALL STAINLESS STEEL ROBAR 2 Bolt coupling can be used to couple dissimilar pipe diameters in the same nominal size group.The coupling is a “stab-fit” design allowing for the use on IPS/HDPE, ductile/PVC and AC pipe without disassembling the coupling. Completely fabricated from stainless steel material minimizing corrosion attacking the coupling.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
1696-2B Two Bolt Stainless Steel Coupling
The NEW ALL STAINLESS STEEL ROBAR 2 Bolt coupling can be used to couple dissimilar pipe diameters in the same nominal size group.The coupling is a “stab-fit” design allowing for the use on IPS/HDPE, ductile/PVC and AC pipe without disassembling the coupling. Completely fabricated from stainless steel material minimizing corrosion attacking the coupling.
MATERIAL SPECIFICATIONS:
Center Barrel: T-304 Stainless Steel.
End Rings: T-304 Stainless Steel.
Gaskets: NBR (BUNA N) Rubber.
Fasteners: 5/8” T-304 Stainless Steel.
Torque: 80 ft-lbs
Working pressures : 4″ through 8″ – 305 PSI
10″ & 12″ – 250 PSI
