MISCELLANEOUS

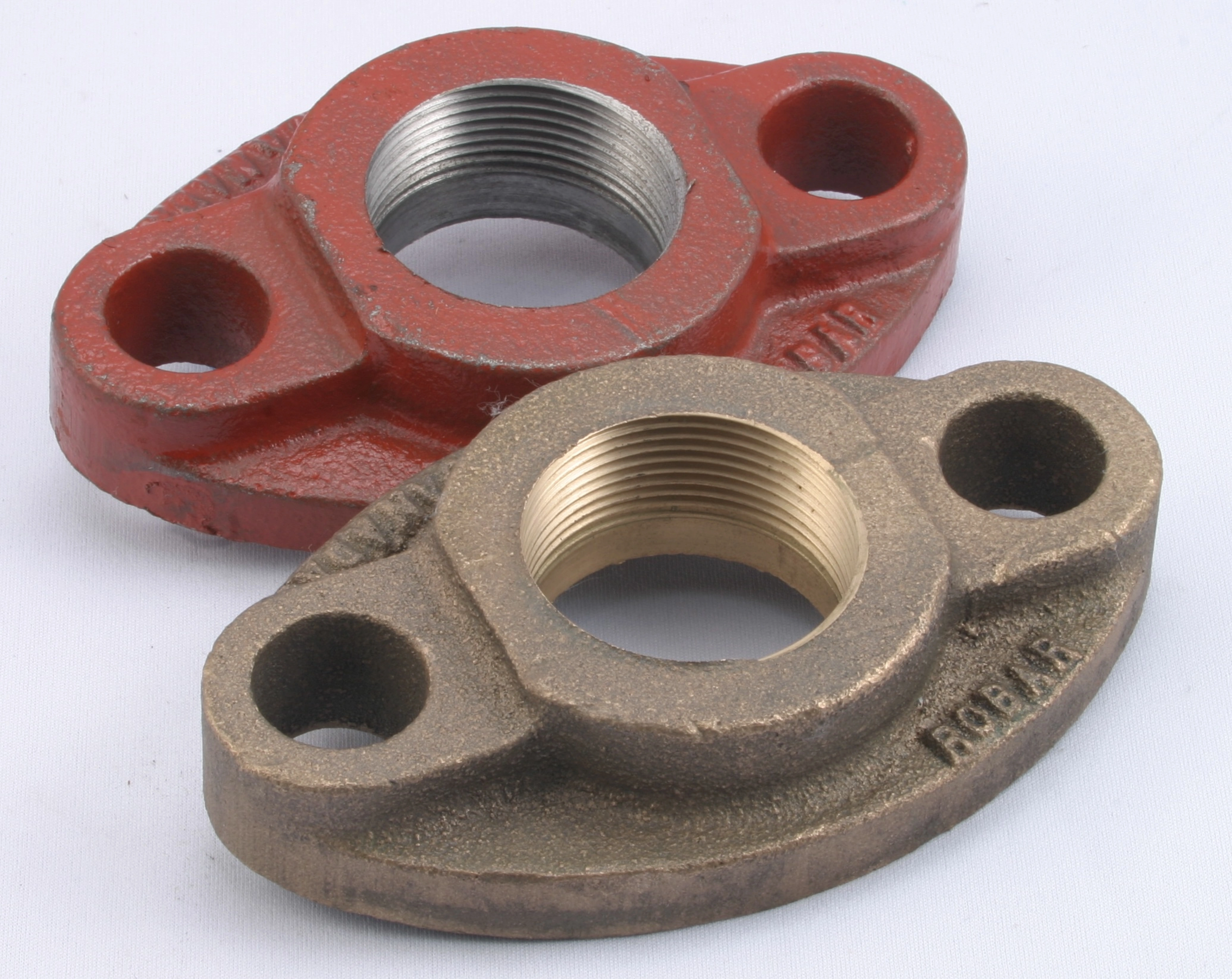

Meter Flanges – Brass and/or Ductile
ROBARMeter
4142 × 3292
PRODUCT OVERVIEW
Meter
Miscellaneous
ROBAR 9440 / 9450 / 9470 Meter Coupling Flanges are used to mate with Flanged Water Meters.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
Meter Flanges – Brass and/or Ductile
ROBAR 9440 / 9450 / 9470 Meter Coupling Flanges are used to mate with Flanged Water Meters.
MATERIAL SPECIFICATIONS:
Body: 9440/9450 – Cast Ductile Iron.
9470 – 85-5-5-5 Brass.
O-Ring: NBR (Buna N) Rubber.
Coating: 9440 – Two coats of Enamel.
9450 – Corrosion Protective Epoxy coating.
9470 – Not coated. (Waterworks Bronze)
