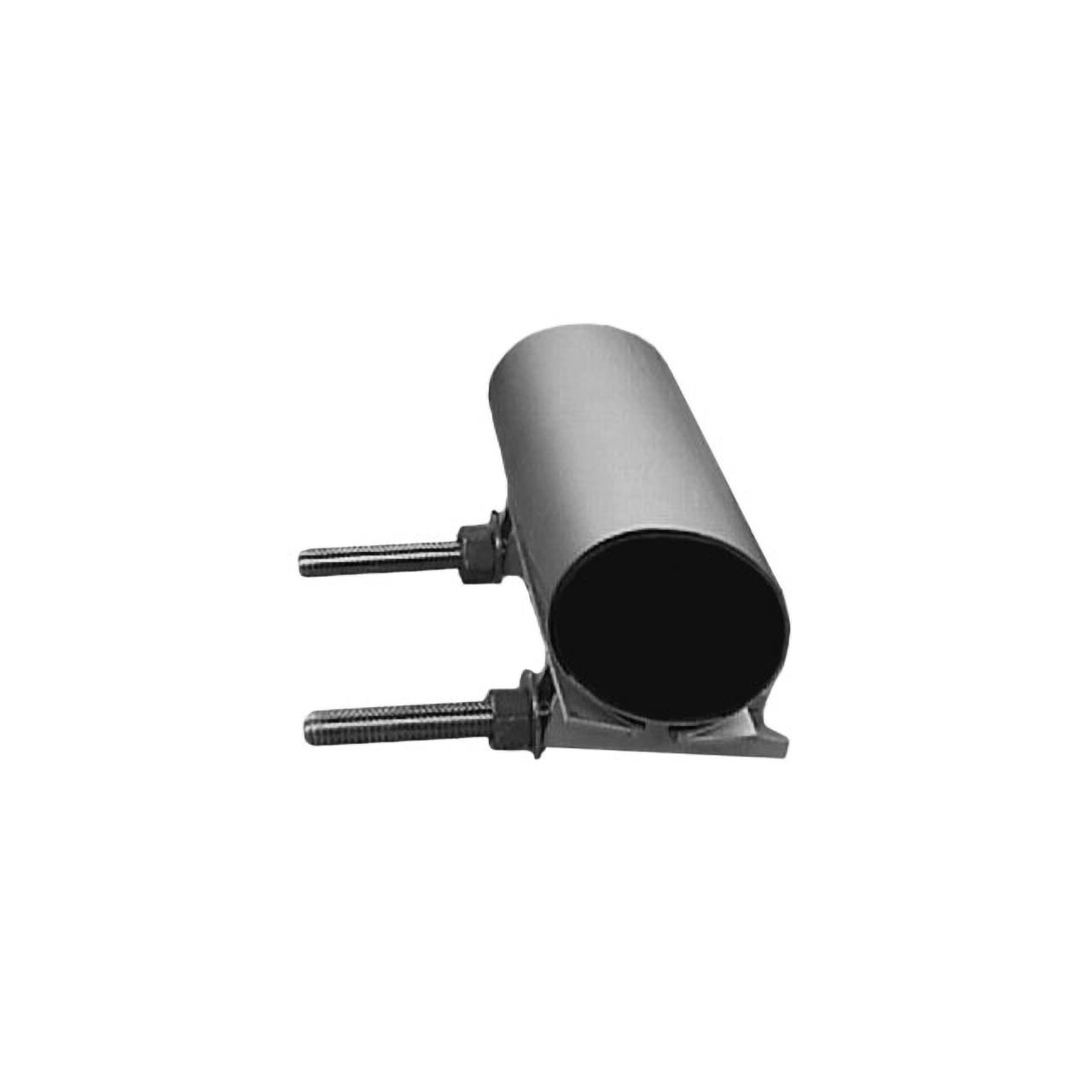

5606/5696 Repair Clamp
PRODUCT OVERVIEW
5606/5696
Repair Clamps
ROBAR 5600 Series Repair Clamps are used to effectively repair holes or breaks in water mains. The 5606 has a full wrap gasket.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
5606/5696 Repair Clamp
ROBAR 5600 Series Repair Clamps are used to effectively repair holes or breaks in water mains. The 5606 has a full wrap gasket.
ROBAR 5696 Repair Clamps are used to repair small punctures, pinholes and splits which do not require a full wrap.
5606 & 5696 – 1 Section sizes 2” – 8”.
MATERIAL SPECIFICATIONS:
Shell: T304 Stainless Steel, fully passivated*
Sidebar: T304 Stainless Steel, fully passivated*
Armor: T304 Stainless Steel, fully passivated*
Gasket: 5606 Nitrile (NBR) Rubber
5696 Styrene Butadiene (SBR) Rubber
Fasteners: 5/8” NC T304 Stainless steel
Nuts coated with anti-galling compound
Torque: 70-80 ft. lbs.
Working pressures up to 150 PSI for sizes 2” to 8”
