5696SC Snap Clamp
PRODUCT OVERVIEW
5696SC
Repair Clamps
ROBAR 5696SC Snap Clamps are used to effectively repair holes or breaks in water mains. The 5696SC has a partial wrap gasket used when a full wrap is not required.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

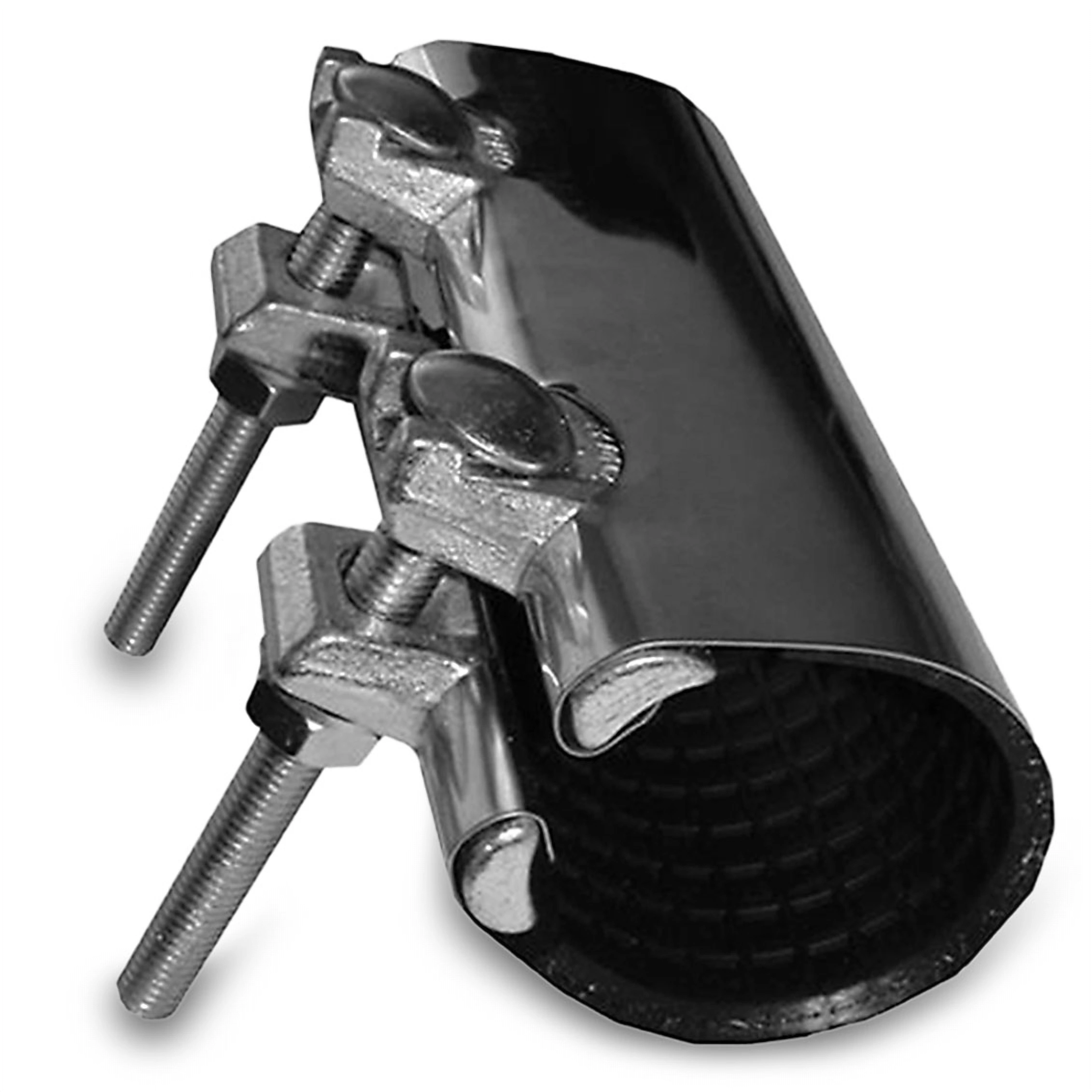

5696SC Snap Clamp
ROBAR 5696SC Snap Clamps are used to effectively repair holes or breaks in water mains. The 5696SC has a partial wrap gasket used when a full wrap is not required.
5696SC available in 3/4″ – 4″ nominal sizes with lengths of 3″, 6″ and 9″.
MATERIAL SPECIFICATIONS:
Shell: T304 Stainless Steel, fully passivated*
Sidebar: T304 Stainless Steel, fully passivated*
Armor: T304 Stainless Steel, fully passivated*
Gasket: Nitrile (NBR) Rubber
Fasteners: 1/2” NC T304 Stainless steel,
Electrolytic Zinc Plated Nuts
Torque: 45 ft. lbs.
Working pressures up to 150 PSI.
