REPAIR CLAMPS

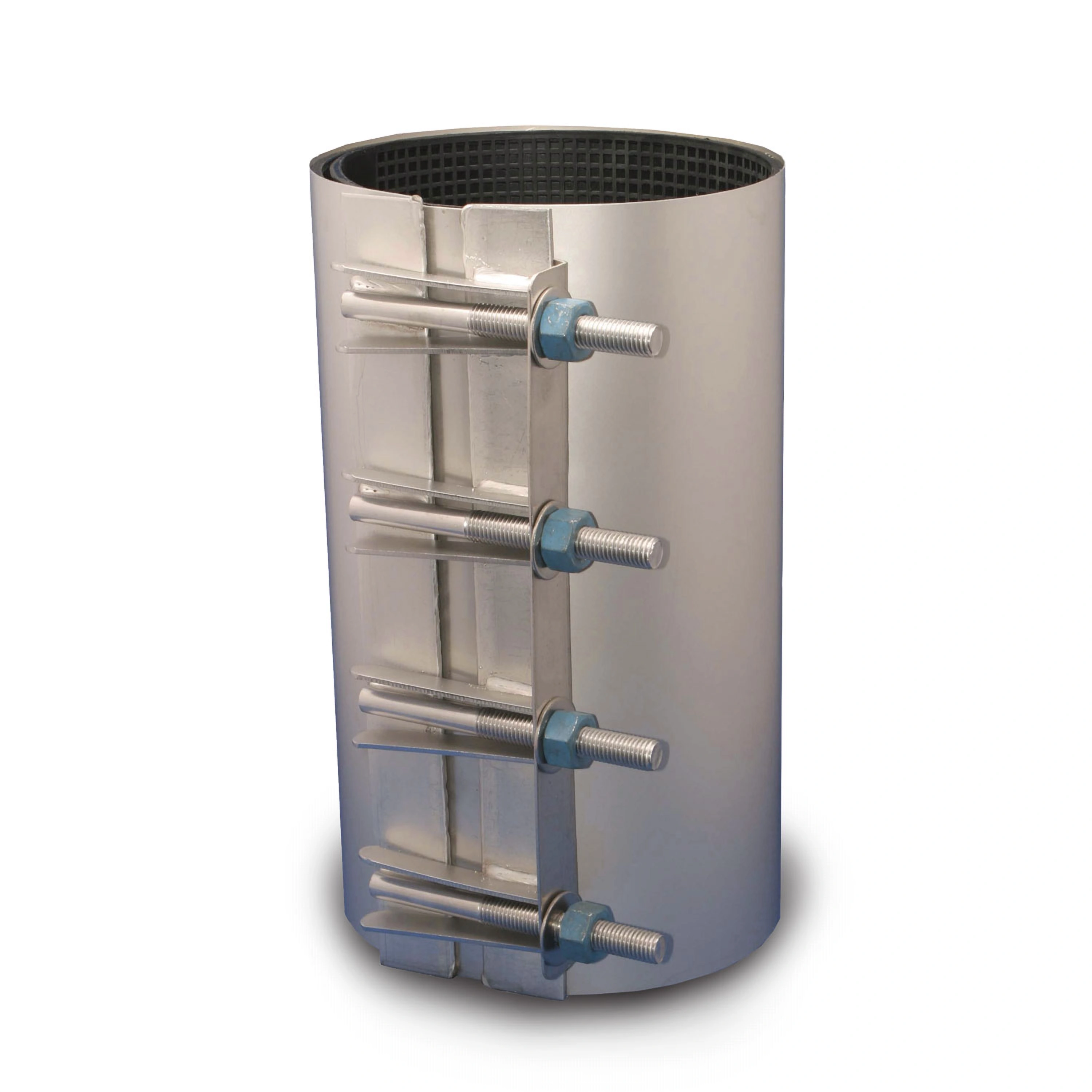

5600 Series Stainless Steel Repair Clamp
PRODUCT OVERVIEW
5600
Repair Clamps
ROBAR 5600 Series Repair Clamps are used to effectively repair holes or breaks in water mains.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
5600 Series Stainless Steel Repair Clamp
ROBAR 5600 Series Repair Clamps are used to effectively repair holes or breaks in water mains.
5616 – 1 set of bolt closures – sizes: 3″-12″
5626 – 2 sets of bolt closures – sizes: 4″-16″

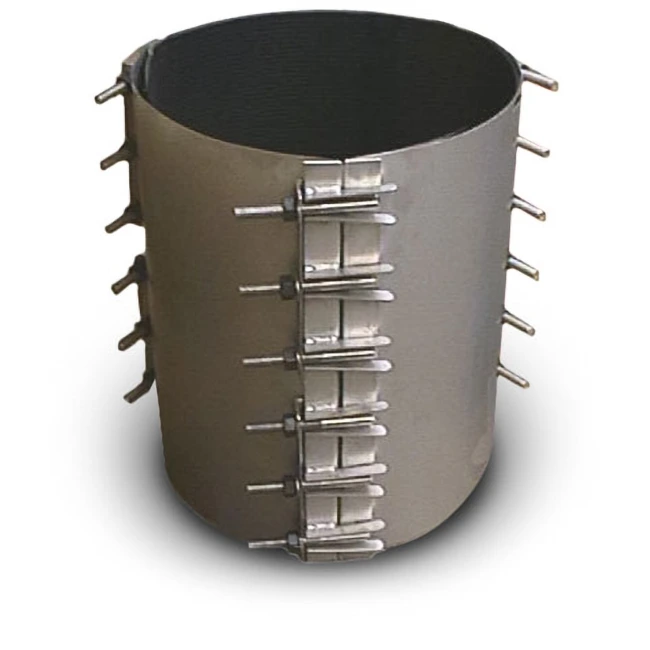

5636 – 3 sets of bolt closures – sizes: 12″ – 30″
Larger Repair Clamps are available upon request.
MATERIAL SPECIFICATIONS:
Shell: T304 Stainless Steel, fully passivated*
Sidebar: T304 Stainless Steel, fully passivated*
Armor: T304 Stainless Steel, fully passivated*
Gasket: Nitrile (NBR) Rubber
Fasteners: 5/8” NC T304 Stainless steel
Nuts coated with anti-galling compound
Torque: 70-80 ft. lbs.

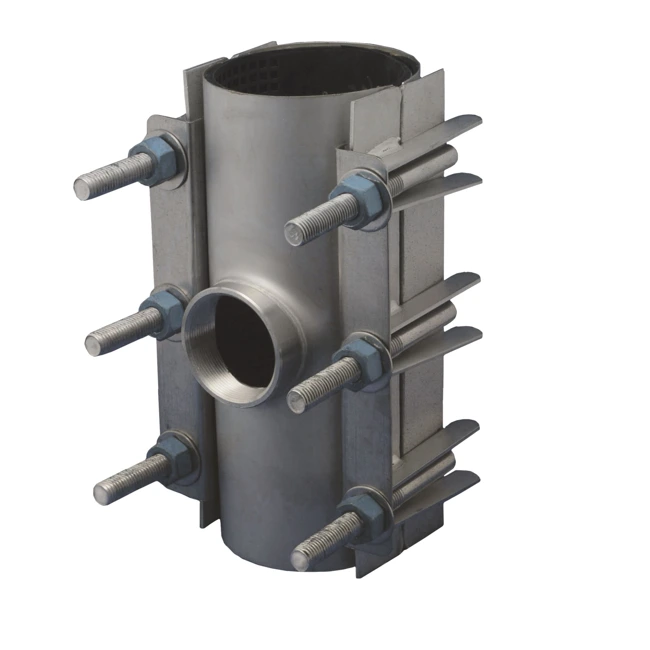

Outlet taps: 3/4” to 2” IP or 3/4” to 2” CC.
Working pressures up to 150 PSI for sizes 3” to 30”
