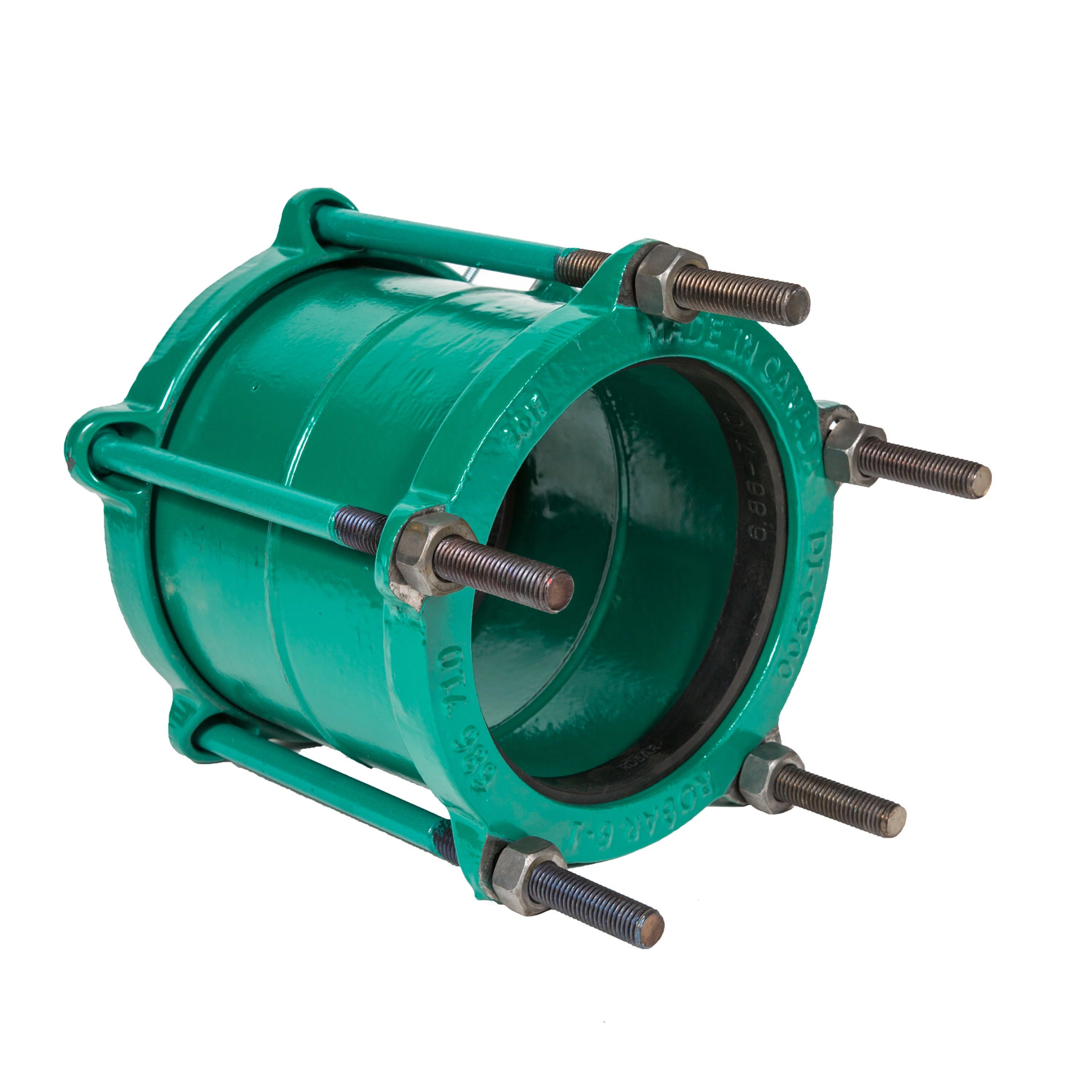

1519/1519R Cast Cathodic Fitted Coupling
PRODUCT OVERVIEW
1519/1519R
Couplings
ROBAR 1519 non-restrained Couplings are specially designed (cathodically fitted) to allow for electrical continuity throughout the entire fitting. Sacrificial anodes (not supplied) are recommended to protect the coupling assembly as long as “continuity” is maintained between the coupling components. To ensure “isolation” between metal pipes, the use of ROBAR 1180 Rubber Isolation Boot is recommended. (See “ROBAR 1180 Rubber Isolation Boot”). Isolation Boots are available in Straight, Transition or Reducing styles.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
1519/1519R Cast Cathodic Fitted Coupling
ROBAR 1519 non-restrained Couplings are specially designed (cathodically fitted) to allow for electrical continuity throughout the entire fitting. Sacrificial anodes (not supplied) are recommended to protect the coupling assembly as long as “continuity” is maintained between the coupling components. To ensure “isolation” between metal pipes, the use of ROBAR 1180 Rubber Isolation Boot is recommended. (See “ROBAR 1180 Rubber Isolation Boot”). Isolation Boots are available in Straight, Transition or Reducing styles.

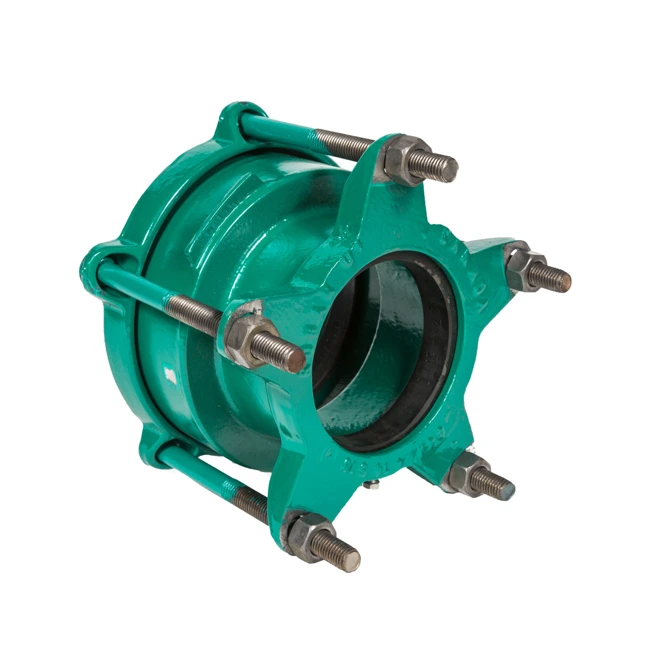

ROBAR 1519R Reducing Couplings are used to make a non-restrained connection between two pipes of different nominal sizes.
MATERIAL SPECIFICATIONS:
Center Sleeve: Cast Ductile Iron
End Rings: Cast Ductile Iron
Gaskets: Nitrile (NBR) Rubber (Other compounds available)
Fasteners: 5/8” NC HSLA Steel, Epoxy coated bolts.
1/4” Zinc plated cap screws
Torque: 70-80 ft. lbs.
Coating: Corrosion Protective Epoxy coating
Working pressures: 2″ through 12″ -300 PSI
14″ through 24″ – 150 PSI
