COUPLINGS

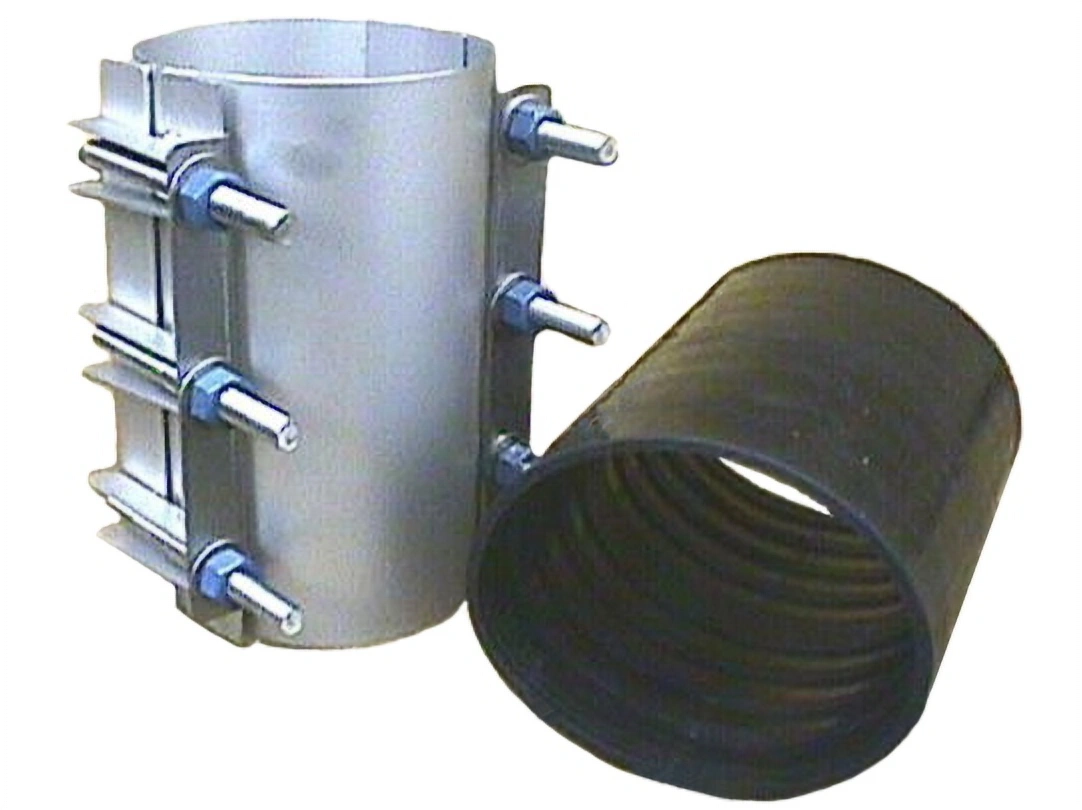

1606 Stainless Steel Coupling
PRODUCT OVERVIEW
1606
Couplings
ROBAR 1606 Couplings are used to make a non-restrained connection between pipes of the same outside diameter. This coupling is fabricated with a range of .30” (pipe OD ± .15”) and therefore is best suited for smooth pipe with a uniform outside diameter (ex. Steel, PVC, Ductile Iron and HDPE).
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
1606 Stainless Steel Coupling
ROBAR 1606 Couplings are used to make a non-restrained connection between pipes of the same outside diameter. This coupling is fabricated with a range of .30” (pipe OD ± .15”) and therefore is best suited for smooth pipe with a uniform outside diameter (ex. Steel, PVC, Ductile Iron and HDPE).
MATERIAL SPECIFICATIONS:
Body: T304 Stainless Steel, also available in T316 Stainless Steel*.
Gaskets: SBR (Buna S) Rubber.
Fasteners: 5/8” NC T304 Stainless Steel*. Nuts coated with anti-galling compound. Torque is 70-80 ft. lbs.
