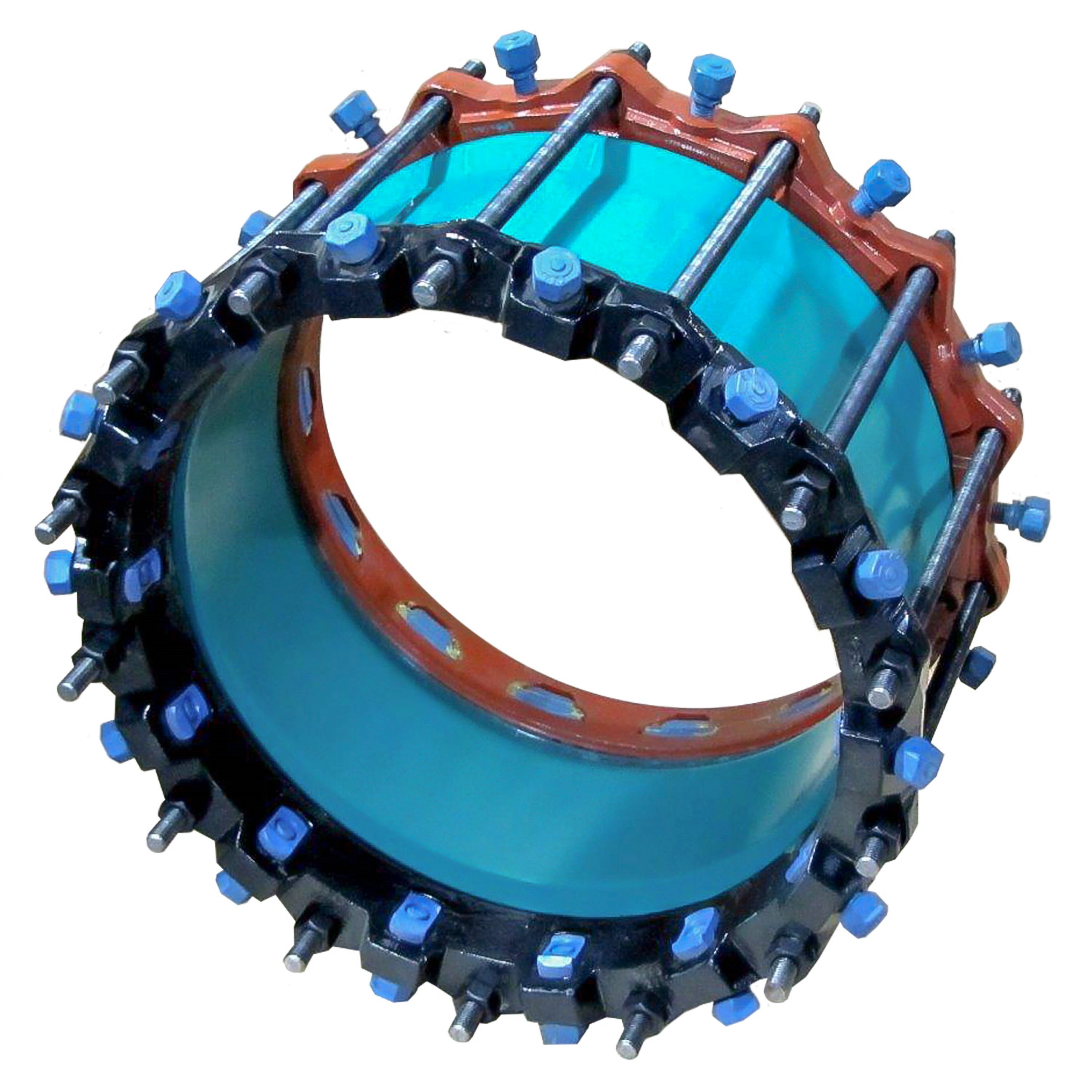

1908RSC Fabricated Restrained Coupling
PRODUCT OVERVIEW
1908RSC
Couplings
Used to join plain end pipe with a flexible restrained connection. Suitable for use on PVC and Ductile Iron pipe. Sizes 14” – 54”. For smaller sizes see the EBAA 3800 Series Restrained Coupling.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
1908RSC Fabricated Restrained Coupling
Used to join plain end pipe with a flexible restrained connection. Suitable for use on PVC and Ductile Iron pipe. Sizes 14” – 54”.
For smaller sizes see the EBAA 3800 Series Restrained Coupling.
MATERIAL SPECIFICATIONS:
Centre Sleeve: Carbon Steel per ASTM A36
Restraint Gland: EBAA 1100 Series for Ductile Iron connection & EBAA 2000
Series for a C-900 connection. ASTM A536 Ductile Iron.
Gaskets: EBAA-Seal™ Mechanical Joint-SBR
Tie Rods: 1908RSC – ASTM A193 Gr B7
1906RSC – T-304 Stainless Steel material
Torque: 75-90 ft. lbs.
Coating: Barrel – Fusion Bonded Epoxy per AWWA C213
End Gland – Mega Bond
