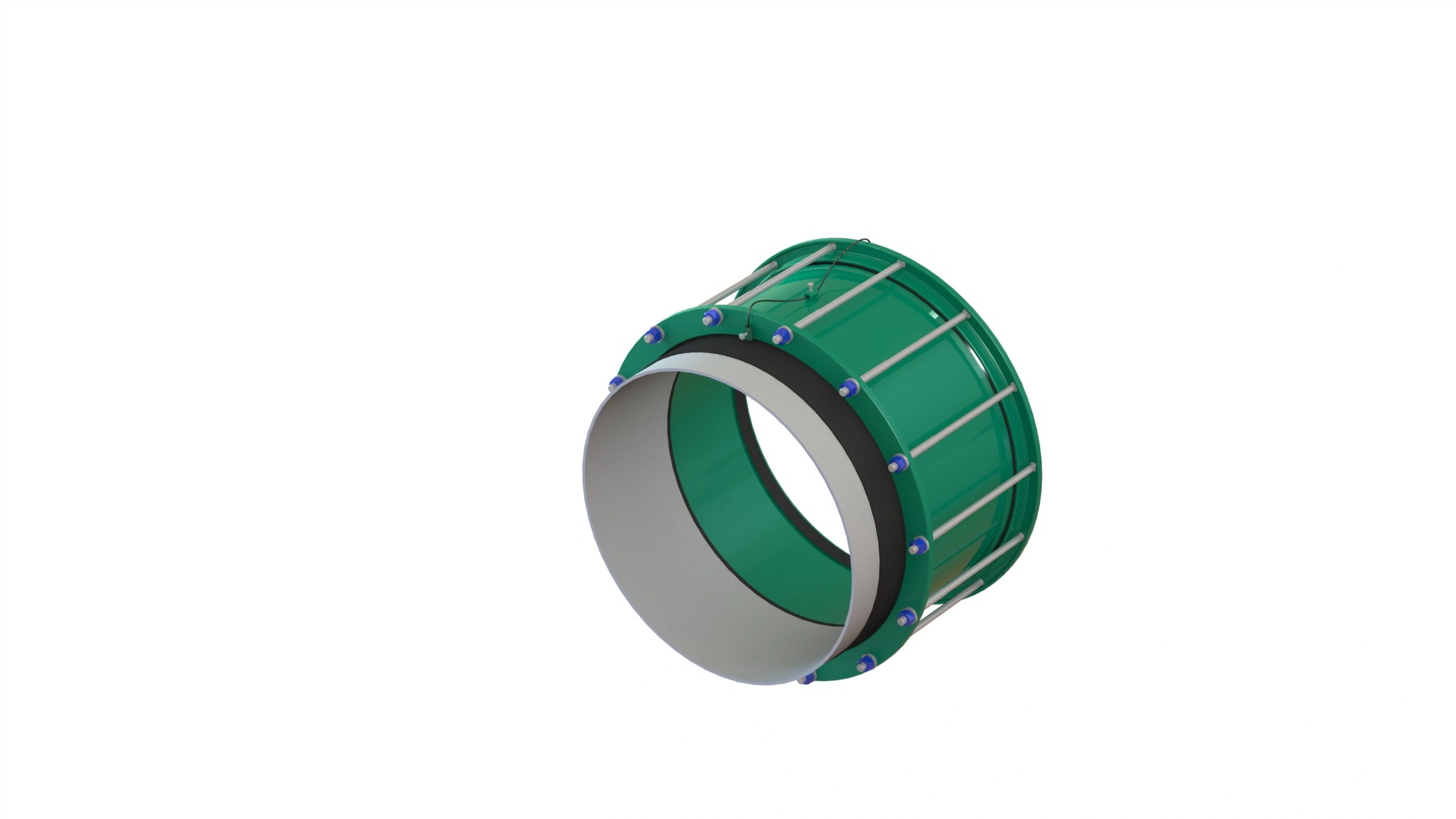

1916 Cathodically Fitted Coupling
PRODUCT OVERVIEW
1916
Couplings
The Robar 1916 is designed to allow electrical continuity throughout the entire coupling.To ensure “isolation” between metal pipes we supply a 7″ wide rubber isolation boot that the coupling assemblies over top of. The coupling can be fabricated to transition between two different pipe diameters.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
1916 Cathodically Fitted Coupling
The Robar 1916 is designed to allow electrical continuity throughout the entire coupling.To ensure “isolation” between metal pipes we supply a 7″ wide rubber isolation boot that the coupling assemblies over top of. The coupling can be fabricated to transition between two different pipe diameters.
MATERIAL SPECIFICATIONS:
Center Sleeve: Carbon Steel
End Rings: Carbon Steel
Gaskets: Nitrile (Buna N) and SBR (Buna S) Rubber (Other compounds available)
Fasteners: 5/8” NC T304 Stainless Steel – Nuts coated with anti-galling compound
Torque: 70-80 ft-lbs.
Coating: Corrosion Protective Epoxy coating
Contact Robar for pressure ratings.
