COUPLINGS
Coupling End Caps
PRODUCT OVERVIEW
Coupling
Couplings
ROBAR 1510 End Caps are used in conjunction with a standard ROBAR Coupling (ordered separately) for the purpose of: • Temporary stops for mains to be extended in future. • Blind ending sections of main for testing. The 2” IP outlet allows for: • A ‘take off’ of 2” (or less) from the main. • Air relief or overflow – top mount. • Blow off or drainage – bottom mount. • Chlorinating of lines.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

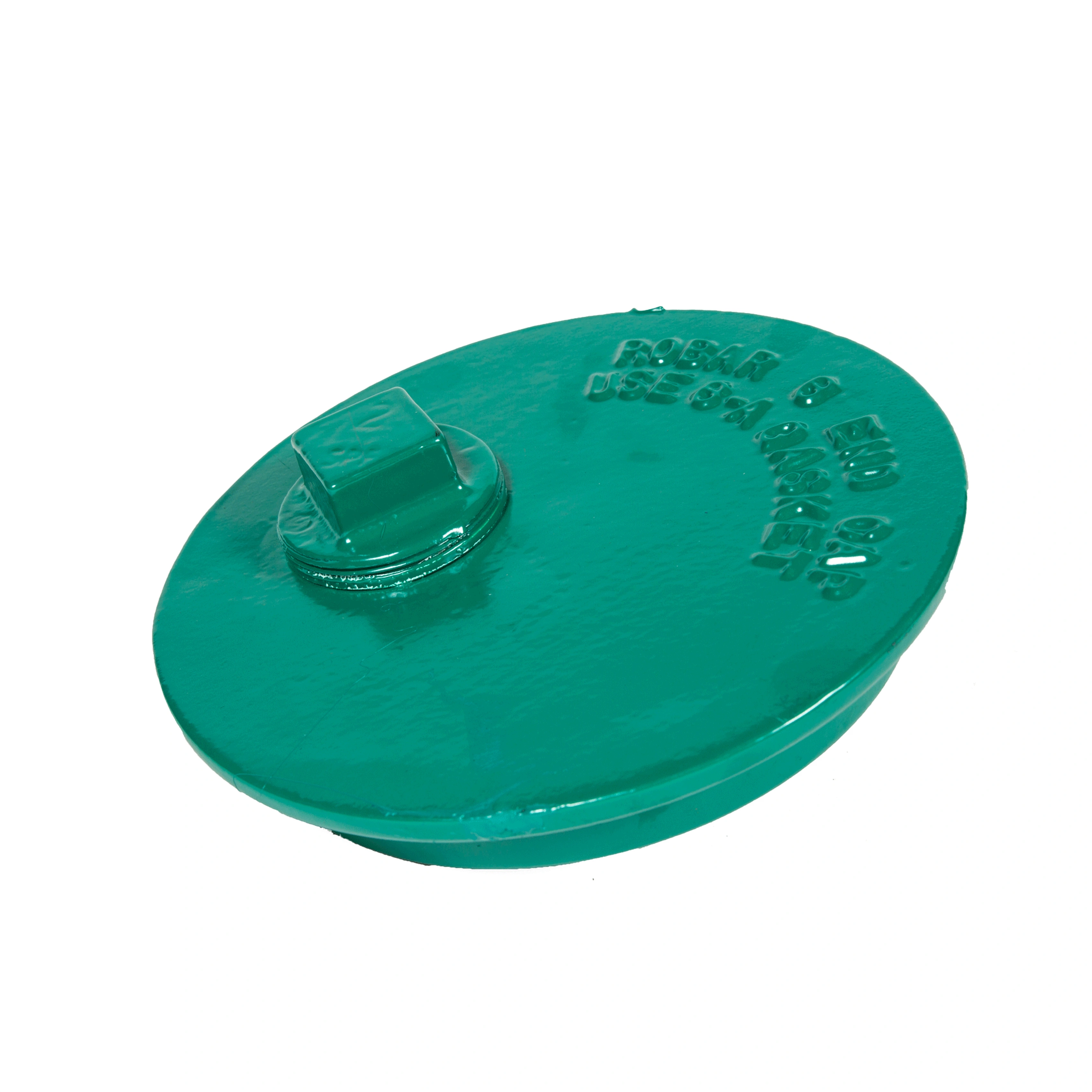

Coupling End Caps
ROBAR 1510 End Caps are used in conjunction with a standard ROBAR Coupling (ordered separately) for the purpose of:
• Temporary stops for mains to be extended in future.
• Blind ending sections of main for testing.
The 2” IP outlet allows for:
• A ‘take off’ of 2” (or less) from the main.
• Air relief or overflow – top mount.
• Blow off or drainage – bottom mount.
• Chlorinating of lines.
MATERIAL SPECIFICATIONS:
Cap: Cast Ductile Iron
Plug: Cast Iron – 2” IP square head.
Coating: 1510 – Corrosion Protective Epoxy coated.
