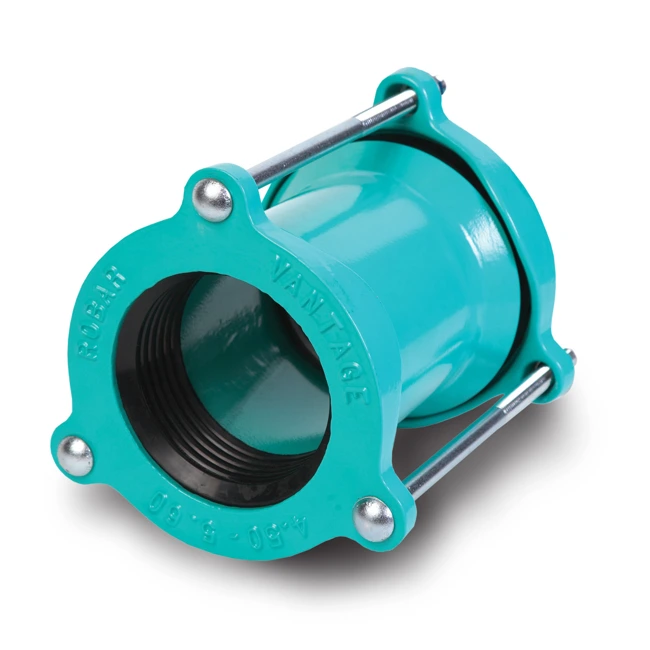

Vantage Multi-Fit Coupling
PRODUCT OVERVIEW
Vantage
Couplings
ROBAR Vantage couplings can be used to couple dissimilar ODs in the same nominal size group. The Vantage coupling comes with a stab-fit design, allowing for use on Ductile, Steel, PVC, HDPE, and AC pipe.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

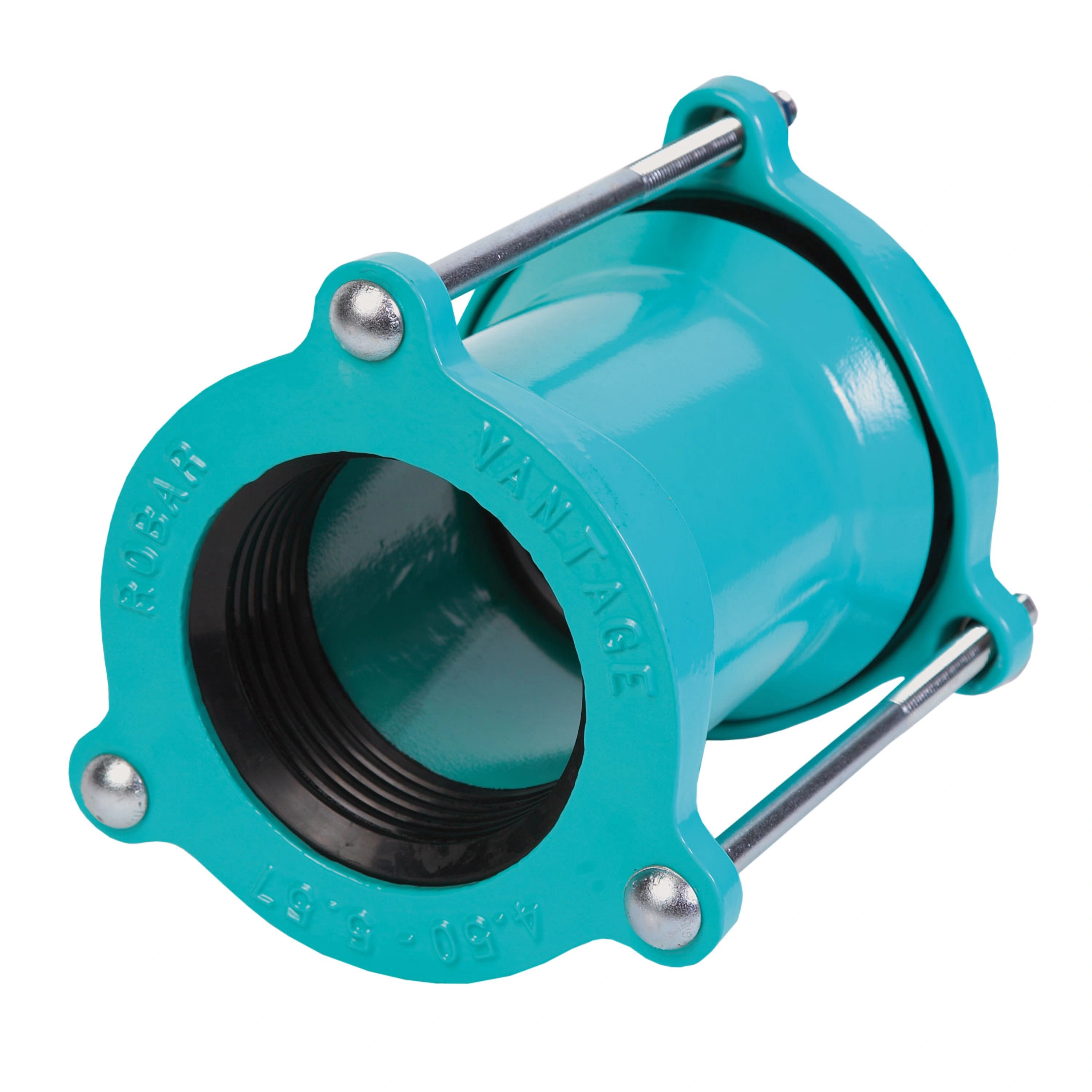

Vantage Multi-Fit Coupling
ROBAR Vantage couplings can be used to couple dissimilar ODs in the same nominal size group. The Vantage coupling comes with a stab-fit design, allowing for use on Ductile, Steel, PVC, HDPE, and AC pipe.
MATERIAL SPECIFICATIONS:
Center Sleeve: Carbon Steel.
End Rings: Cast Ductile Iron.
Gaskets: Nitrile (NBR) Rubber. (other gasket material available upon request)
Fasteners: 1598 – 5/8” NC HSLA Steel.
1596 – 5/8” T304 Stainless Steel. Nuts coated with anti-galling compound.
Torque: 70 ft-lbs.
Coating: 1598 /1596 – Corrosion Protective Epoxy coating.
Working pressure 175PSI for 4″ to 10″ and 150PSI for 12″
