FCA & DISMANTLING JOINTS
Cast Flange Coupling Adapter
PRODUCT OVERVIEW
Cast
FCA & Dismantling Joints
ROBAR 7506/7508 Flanged Coupling Adapters are used to flexibly adapt plain end pipe to flanged end.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

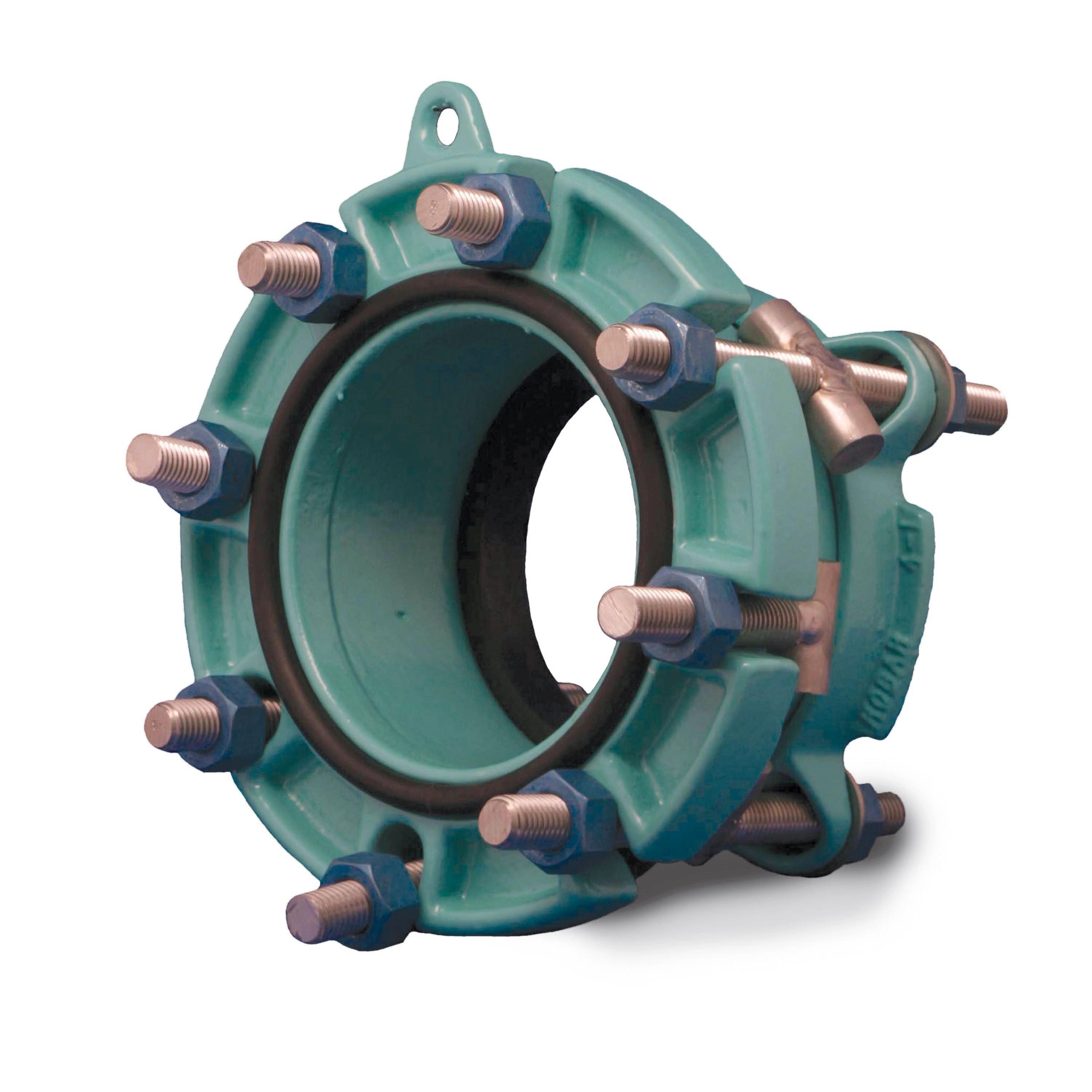

Cast Flange Coupling Adapter
ROBAR 7506/7508 Flanged Coupling Adapters are used to flexibly adapt plain end pipe to flanged end.
MATERIAL SPECIFICATIONS:
Flanged Body: Cast Ductile Iron, Class “D”, C-207, with ANSI 150 lbs. drilling.
End Ring: Cast Ductile Iron.
Gaskets:Flange: Nitrile (NBR) Rubber.
Coupling End: Nitrile (NBR) Rubber.**
Fasteners: 7508 – Low Alloy Steel.
7506 – Stainless Steel fasteners, fully passivated*.
Nuts coated with anti-galling compound.
Torque: 70-80 ft. lbs.
Coatings: 7506/7508 – Epoxy coated Body and End Ring.
