FCA & DISMANTLING JOINTS
HDPE Restrained Flange Coupling Adpater
PRODUCT OVERVIEW
HDPE
FCA & Dismantling Joints

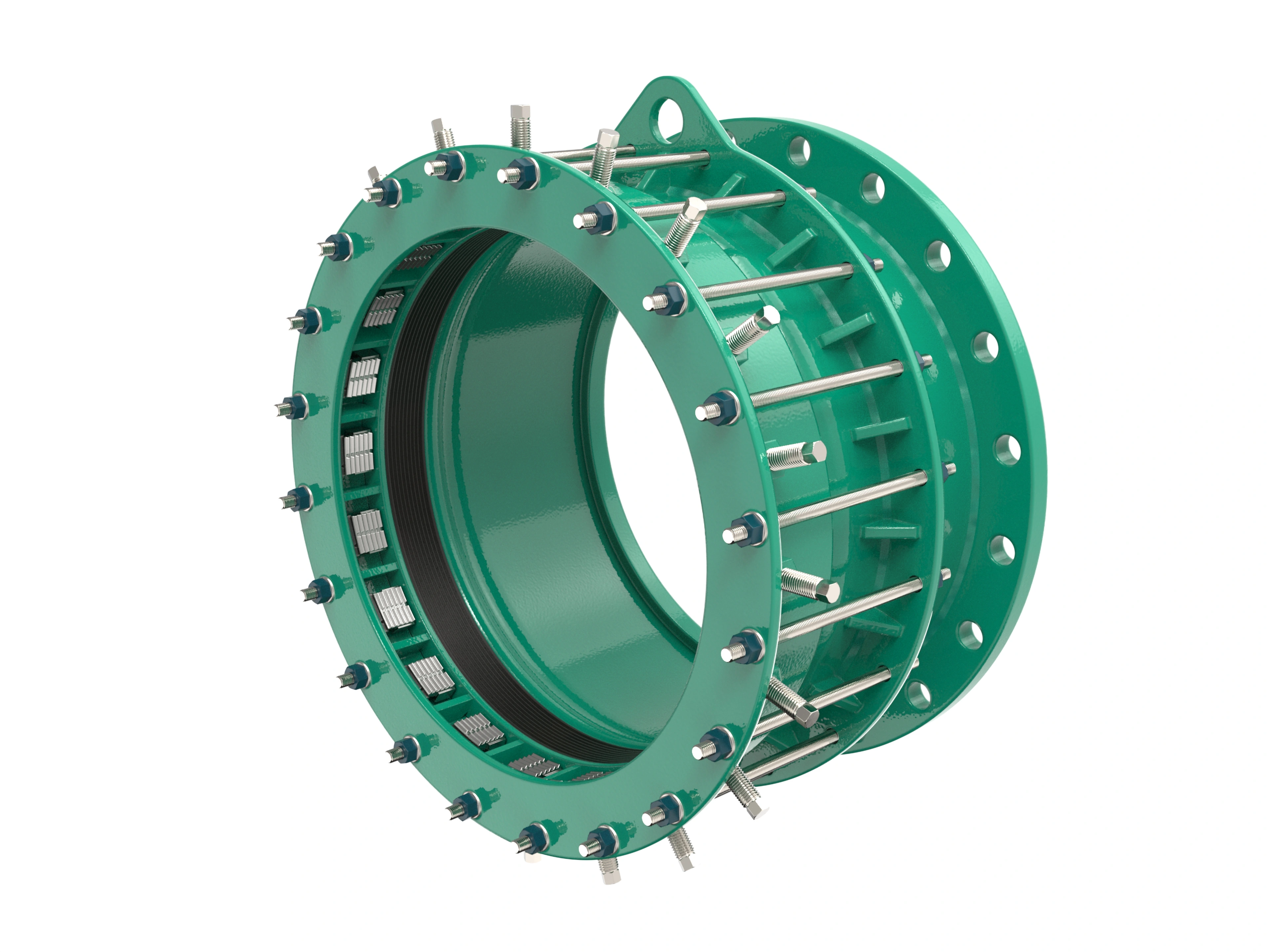

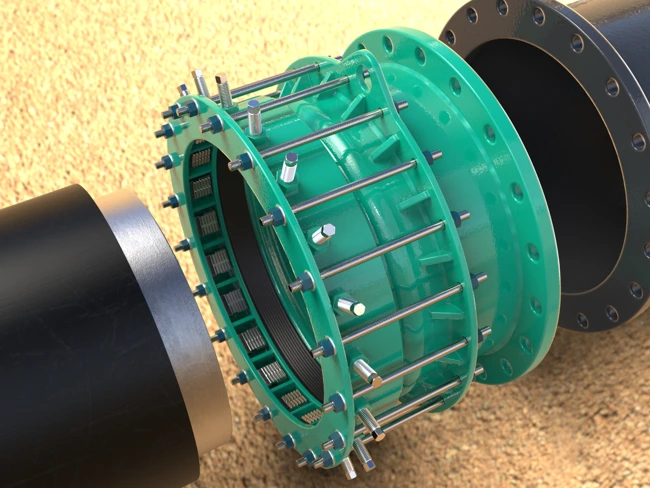

The Robar HDPE Restrained Flange Coupling Adapter (RFCAH) for HDPE is a universal wide-range restrained mechanical FCA to allow plain end connection on HDPE pipe. The RFCAH is available in 14″-63″.
PRODUCT RESOURCES
Details you can work with.
See the original product page for available technical information.
SPECIFICATIONS & APPLICATION
HDPE Restrained Flange Coupling Adpater
The Robar HDPE Restrained Flange Coupling Adapter (RFCAH) for HDPE is a universal wide-range restrained mechanical FCA to allow plain end connection on HDPE pipe. The RFCAH is available in 14″-63″.
Material Specifications:
Center Sleeve & End Rings: Carbon Steel per ASTM A36 or CSA 44W
Gaskets: Nitrile (NBR) Rubber per ASTM D2000
Fasteners: 7908RFCAH – ASTM A193 Gr B7
7906RFCAH – T-304 Stainless Steel per ASTM A193
Coating: Waterarmor G17 Fusion Bonded Thermoplastic per C229. Other options available.
Contact Robar for more information.
