FCA & DISMANTLING JOINTS
Fabricated Flange Coupling Adapter
PRODUCT OVERVIEW
Fabricated
FCA & Dismantling Joints
Robar Fabricated Flange Coupling Adapters are used to flexibly adapt plain end pipe to a flanged connection.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

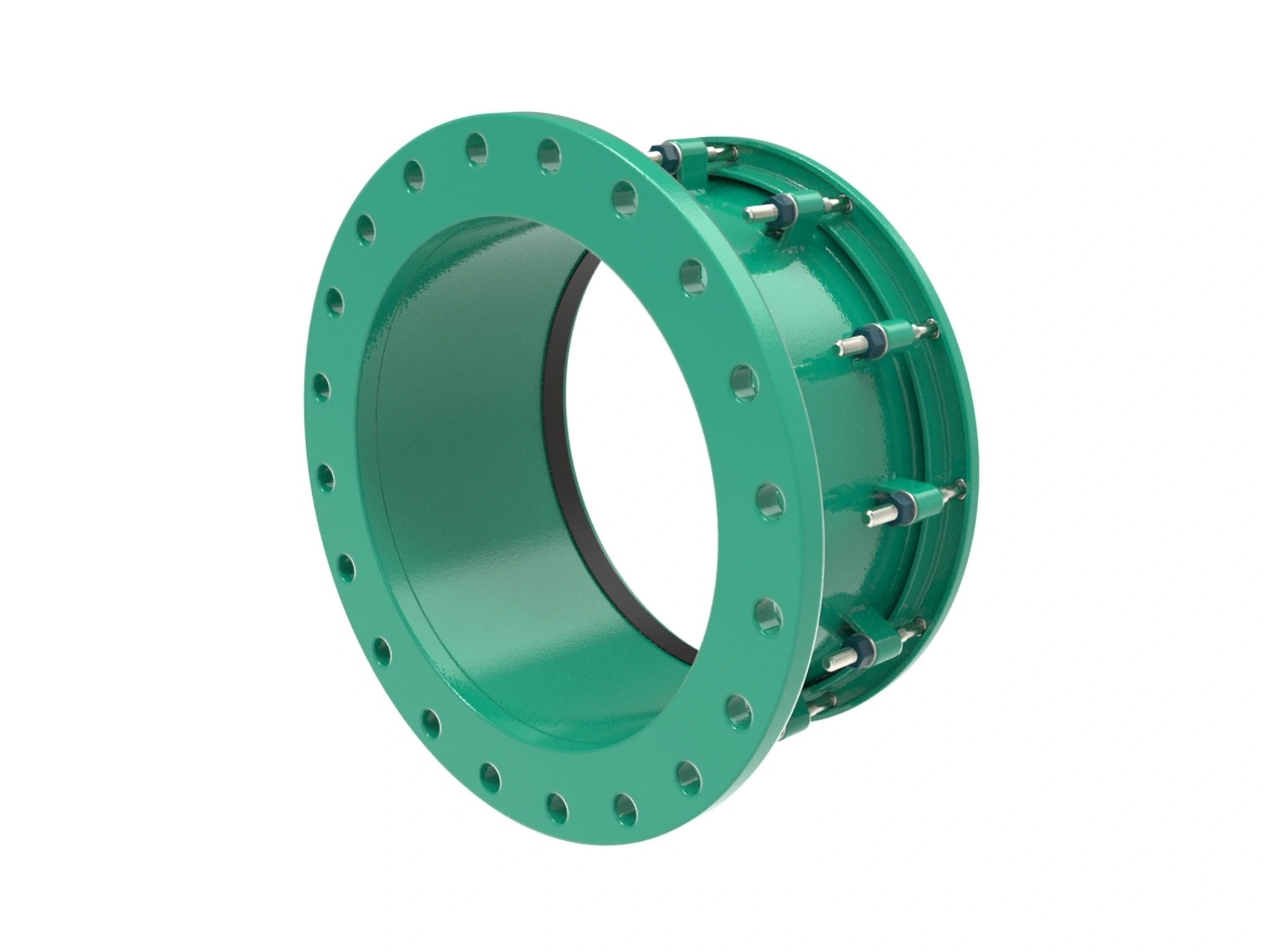

Fabricated Flange Coupling Adapter
Robar Fabricated Flange Coupling Adapters are used to flexibly adapt plain end pipe to a flanged connection.
Material Specifications:
Center Sleeve: Carbon Steel
Flange: AWWA C207 class D – ANSI 1021 150lb drilling (Class E and F available upon request)
End Ring: Carbon Steel
Gaskets: Nitrile (NBR) Rubber
Fasteners: 7908 – 5/8 NC Mild Steel Low Alloy
7906 – 5/8 T-304 Stainless Steel. Nuts coated with anti-galling compound
Coating: 7906/7908 – Fusion Bonded Epoxy Coating
