FCA & DISMANTLING JOINTS

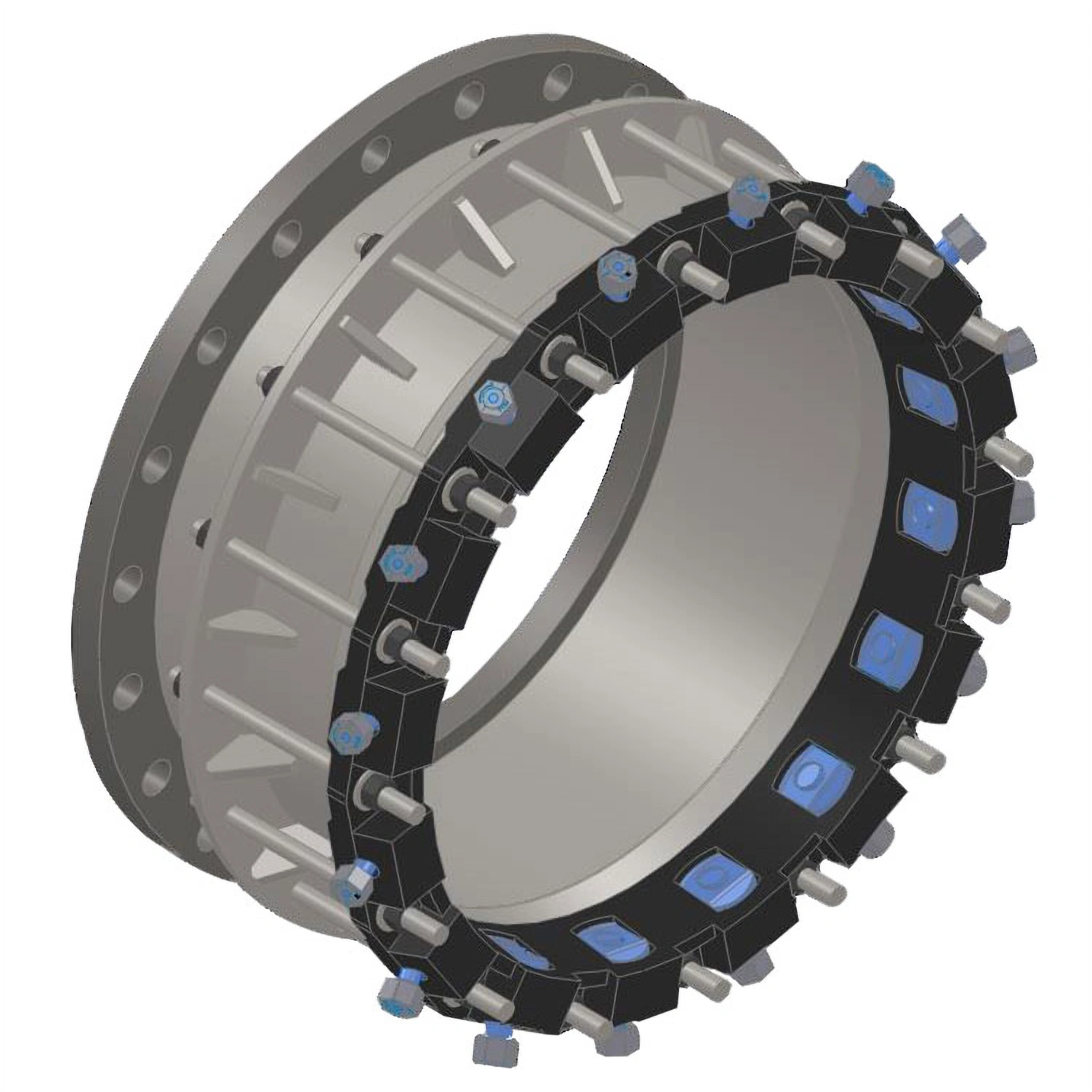

Restrained Flange Coupling Adapter
PRODUCT OVERVIEW
Restrained
FCA & Dismantling Joints
Robar 7906RFCA Restrained Flange Coupling Adapter allows for fully restrained flexible joint to adapt from a flange to ductile iron pipe or C-905 PVC pipe 14″ thru 48″.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
Restrained Flange Coupling Adapter
Robar 7906RFCA Restrained Flange Coupling Adapter allows for fully restrained flexible joint to adapt from a flange to ductile iron pipe or C-905 PVC pipe 14″ thru 48″.
Material Specifications:
Center Sleeve: Carbon Steel per ASTM A36
Flange: AWWA C-207 class D – ANSI 1021 150lb drilling (class E or F flanges available)
Restrained Gland: EBAA 1100 Series for Ductile Iron connection. ASTM A536 Ductile Iron construction.
EBAA 2000PV Series for C-905 connection. ASTM A536 Ductile Iron construction.
Gasket: EBAA-Seal TM Mechanical Joint – SBR
Tie Rods: ASTM A193 Gr B7 (Stainless Steel material available)
Coating: Barrel and flange – Fusion Bonded Epoxy per AWWA C-213
End Gland – Mega Bond Epoxy
