FCA & DISMANTLING JOINTS
Dismantling Joints – Fabricated Steel
PRODUCT OVERVIEW
Dismantling
FCA & Dismantling Joints

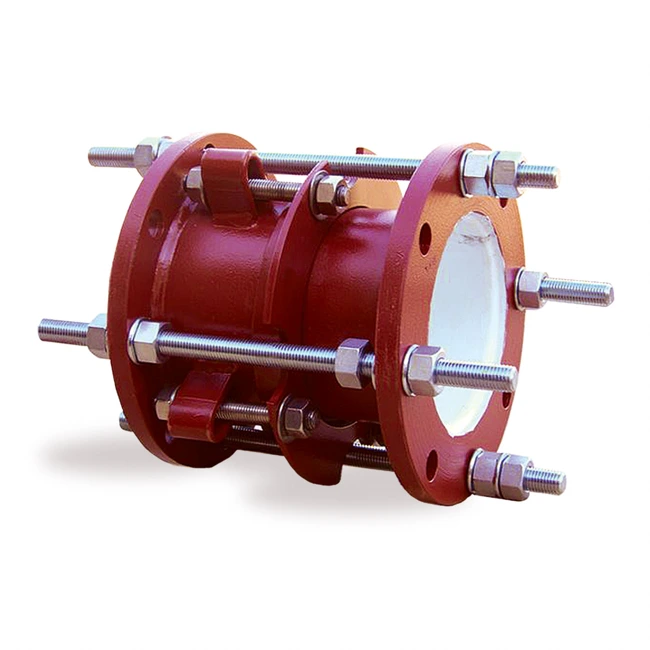

Robar fabricated steel Dismantling Joints allows for adjustability once a flange and other flange fitting are in place. Dismantling Joints provide longitudinal adjustment which allows for future modifications and adjustments. The Dismantling Joint provides an easier way of repairing or doing maintenance on a flanged piping system.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

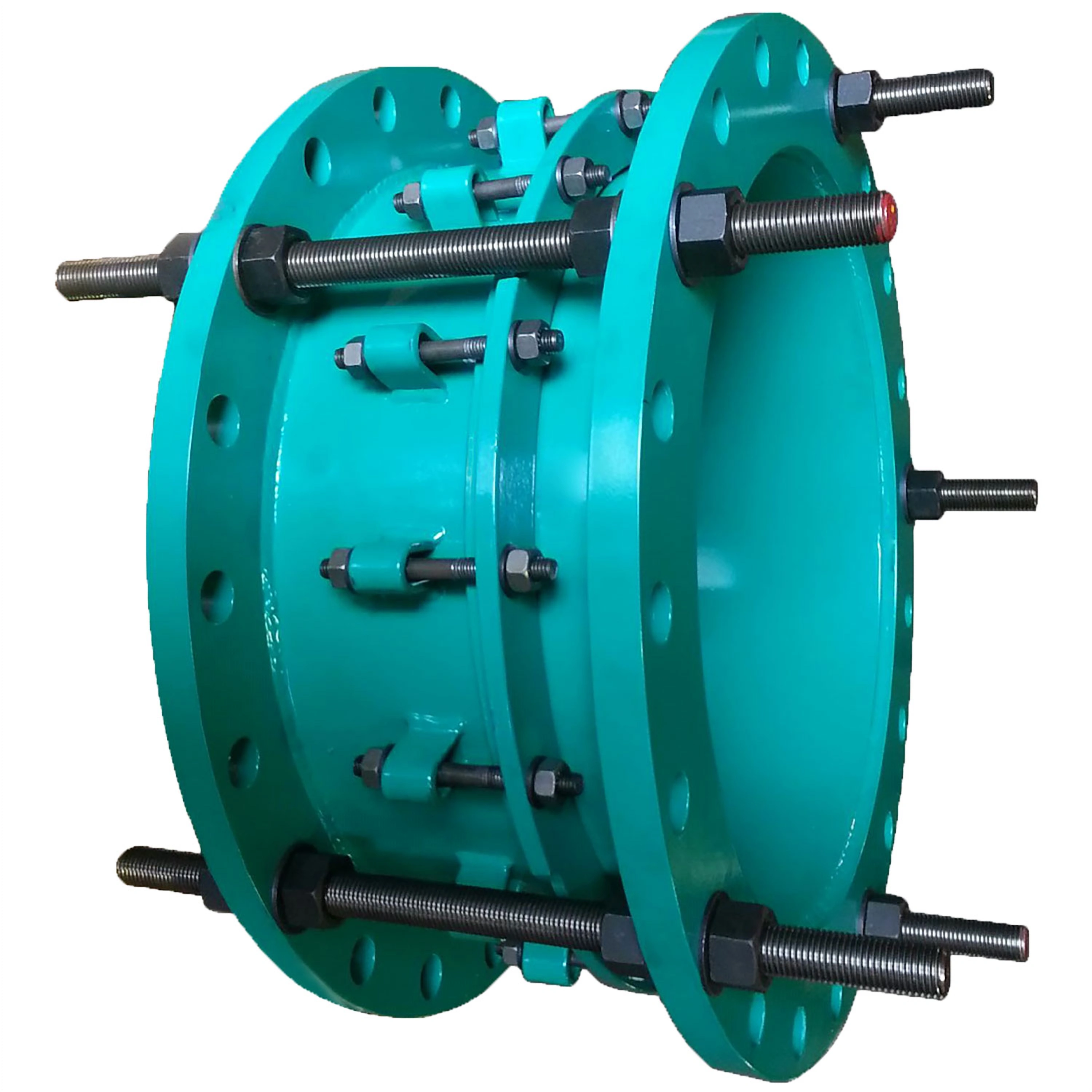

Dismantling Joints – Fabricated Steel
Robar fabricated steel Dismantling Joints allows for adjustability once a flange and other flange fitting are in place. Dismantling Joints provide longitudinal adjustment which allows for future modifications and adjustments. The Dismantling Joint provides an easier way of repairing or doing maintenance on a flanged piping system.
Sizes: 4″ to 96″. Contact Robar for larger sizes.
Material Specifications:
Flange Spool, End Ring and Body: Carbon Steel ASTM A36
Gaskets: Nitrile (NBR) Other materials available
Tie Rods: ASTM A193 Gr B7 per M11 (Stainless Steel available)
Coating: Fusion Bonded Epoxy
