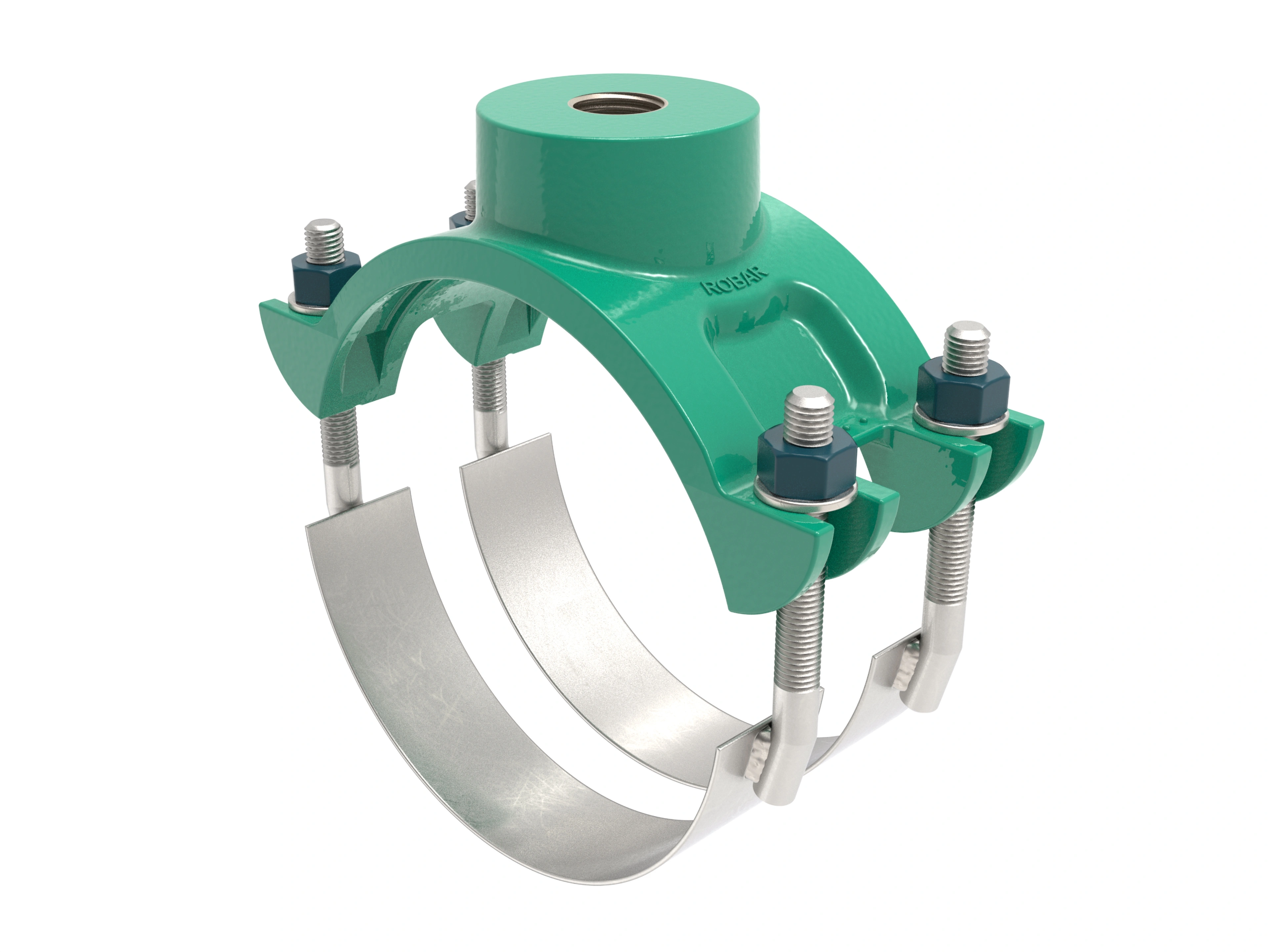

2506 Service Saddle
PRODUCT OVERVIEW
2506
Service Saddles
ROBAR 2506 Service Saddles are used to take a service outlet off a transmission or distribution line. The 2506 is suitable for use on C900 pipe due to their wide strap configuration. The 2506 comes with fusion bonded epoxy coating and stainless steel straps.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
2506 Service Saddle
ROBAR 2506 Service Saddles are used to take a service outlet off a transmission or distribution line. The 2506 is suitable for use on C900 pipe due to their wide strap configuration. The 2506 comes with fusion bonded epoxy coating and stainless steel straps.
MATERIAL SPECIFICATIONS:
Saddle Body: Cast Ductile Iron body
Gaskets: Nitrile (NBR) Rubber
Other compounds available
Saddle Straps: 1/2” NC T304 Stainless Steel*
Fasteners: 1/2” T304 Stainless Steel*
Nuts coated with anti-galling compound
Torque: 45 ft-lbs.
Coating: Fusion Bonded Epoxy
Working pressures up to 350 PSI for sizes 2” to 16”
