SERVICE SADDLES
2600 Series Stainless Steel Service Saddle
PRODUCT OVERVIEW
2600
Service Saddles
ROBAR 2606 Series Service Saddles are used to take a service outlet off any transmission or distribution supply line. Especially recommended for plastic pipe or where corrosion is a factor. Can be used on Ductile, Cast Iron, Steel, PVC, HDPE, and AC pipe.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION

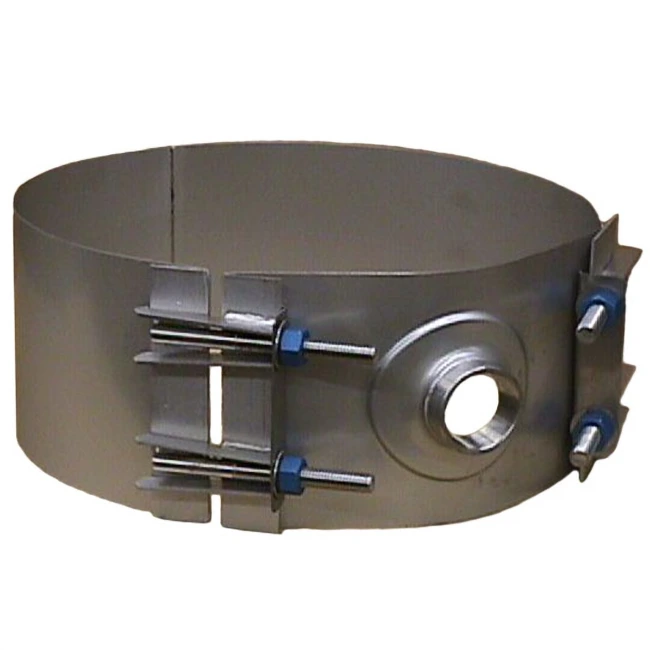

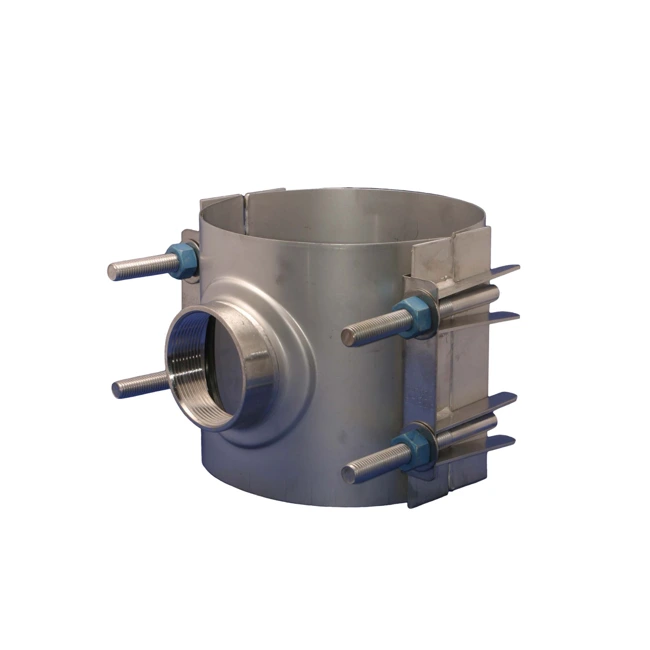

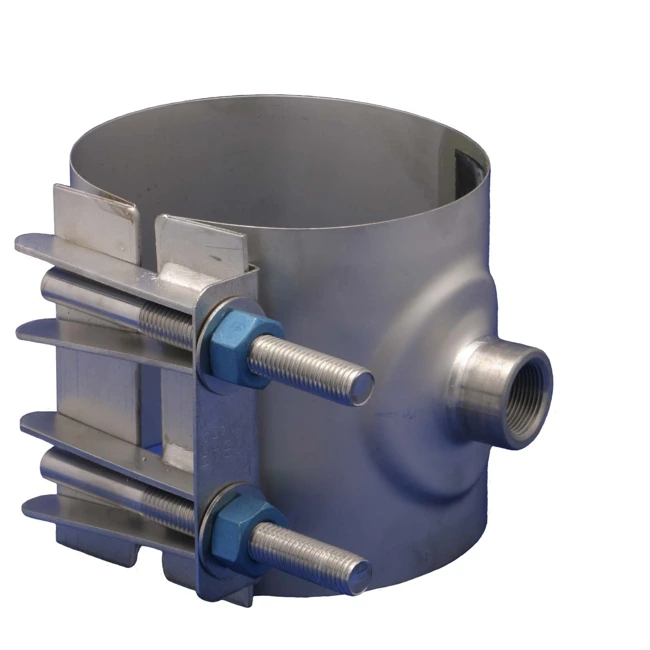

2600 Series Stainless Steel Service Saddle
ROBAR 2606 Series Service Saddles are used to take a service outlet off any transmission or distribution supply line. Especially recommended for plastic pipe or where corrosion is a factor. Can be used on Ductile, Cast Iron, Steel, PVC, HDPE, and AC pipe.
2616 – 1 set of bolt closures
2626 – 2 sets of bolt closures
2636 – 3 sets of bolt closures
MATERIAL SPECIFICATIONS:
Saddle Body: T304 Stainless Steel, fully passivated.
Gasket: Nitrile (NBR) Rubber.
Robar “Boss Pad” Gasket.
Other compounds available.
Fasteners: 5/8” NC T304 Stainless Steel studs, rolled threads, fully passivated.
Nuts coated with anti-galling compound.
Torque: 65 ft. lbs.
