SERVICE SADDLES

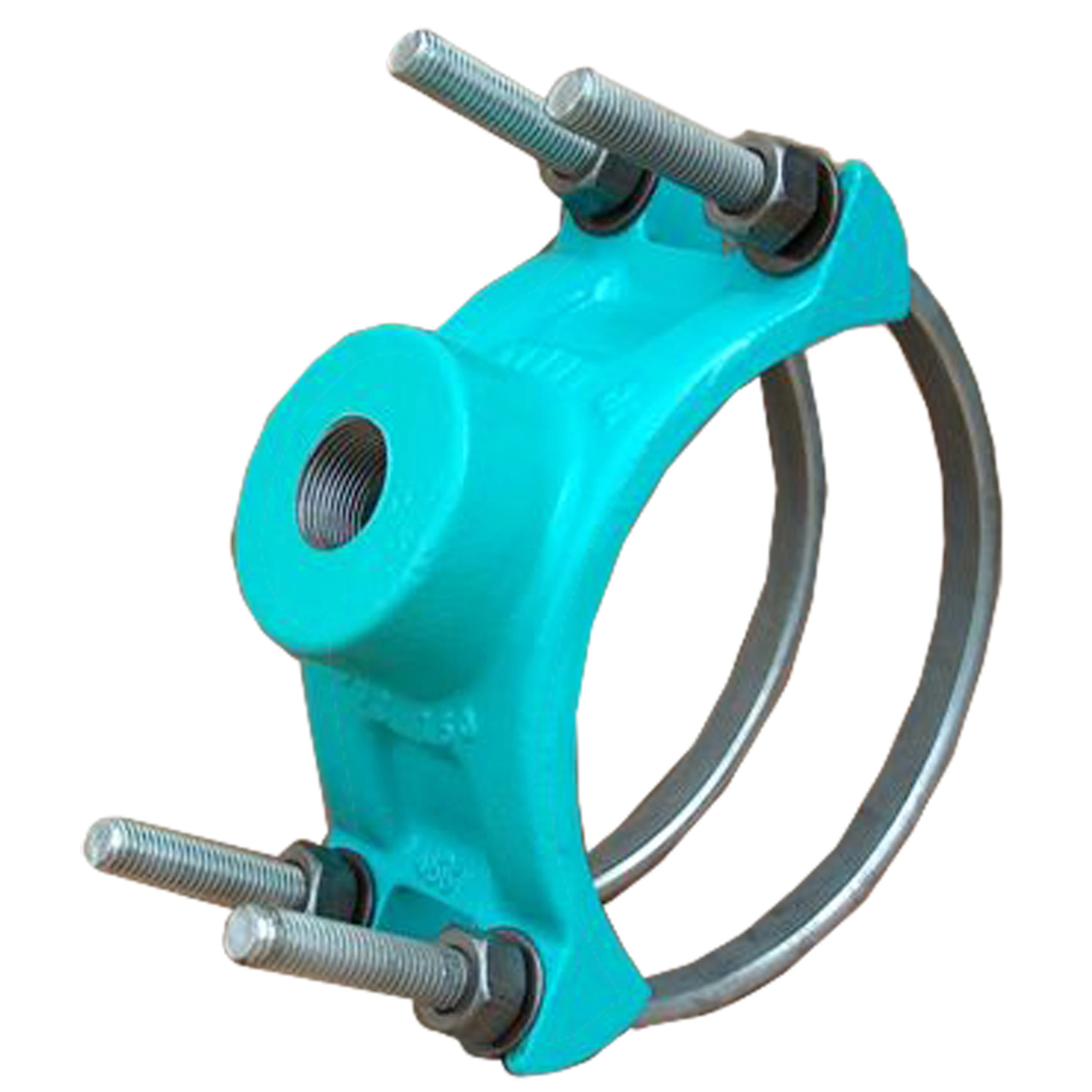

2508 Service Saddle
PRODUCT OVERVIEW
2508
Service Saddles
ROBAR 2508 Service Saddles are used to take a service outlet off a transmission or distribution line. Not suitable for plastic pipe. Comes fusion bonded epoxy coated with low alloy steel straps.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
2508 Service Saddle
ROBAR 2508 Service Saddles are used to take a service outlet off a transmission or distribution line. Not suitable for plastic pipe. Comes fusion bonded epoxy coated with low alloy steel straps.
MATERIAL SPECIFICATIONS:
Saddle Body: Cast Ductile Iron body
Gaskets: Nitrile (NBR) Rubber (Other compounds available)
Saddle Straps: 5/8” NC Low Alloy Steel, U-bolt
Fasteners: 5/8” NC HSLA. Zinc plated.
Torque: 70-80 ft. lbs.
Coating: Fusion Bonded Epoxy
Working pressures up to 300 PSI for sizes 4” to 16”
