SERVICE SADDLES

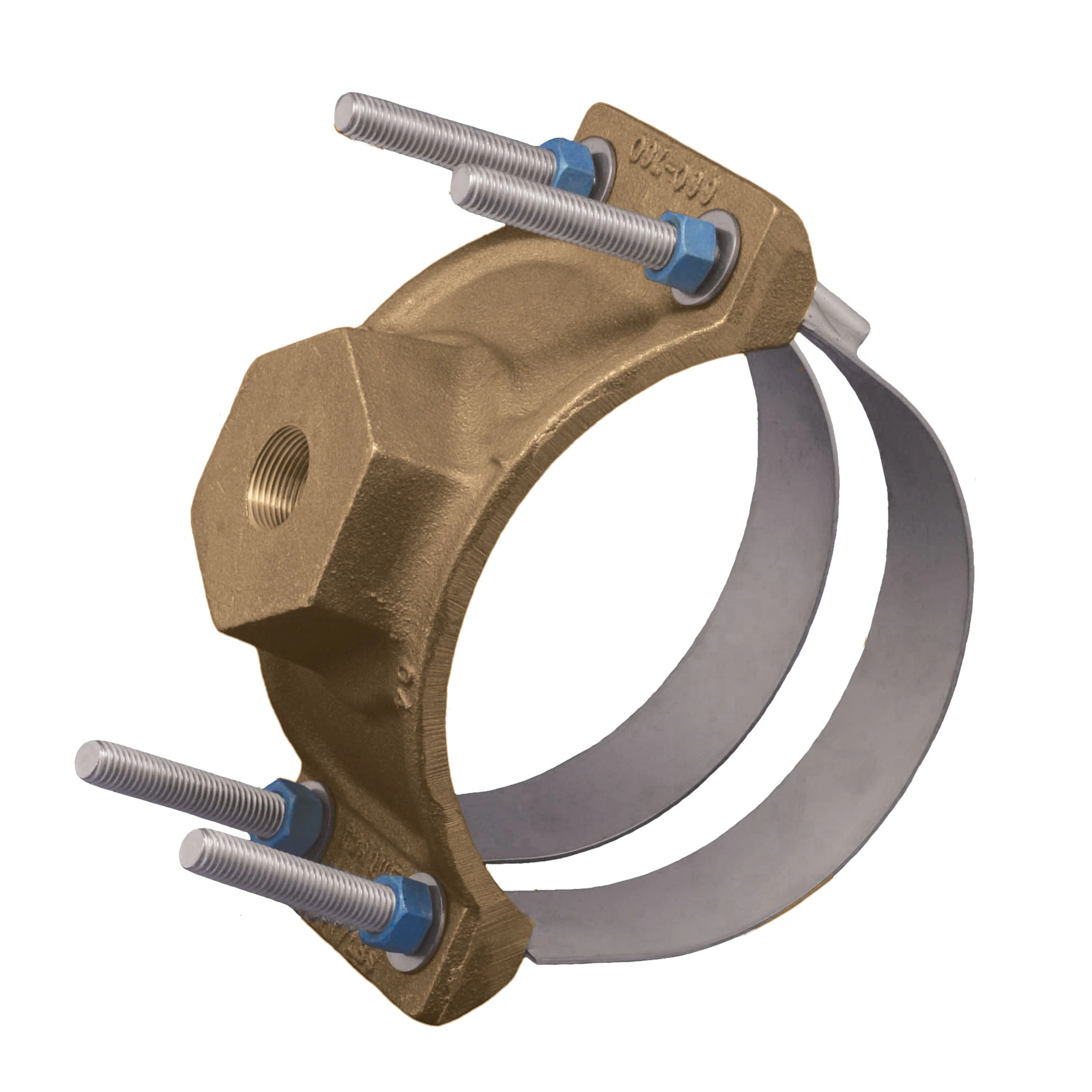

2706 Bronze Service Saddle
PRODUCT OVERVIEW
2706
Service Saddles
ROBAR 2706 Service Saddles are used to take a service outlet off a transmission or distribution line. Waterworks Bronze and passivated T304 Stainless Steel are “noble” materials which are closely related to each other near the top of the Galvanic Scale of corrosion resistance. Unlike pairs of widely dissimilar metals, they will both exhibit long life in most ‘hot’ soil environments. Can be used on PVC (C900+ Series), Ductile, Iron, Steel, HDPE and AC pipe.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
2706 Bronze Service Saddle
ROBAR 2706 Service Saddles are used to take a service outlet off a transmission or distribution line. Waterworks Bronze and passivated T304 Stainless Steel are “noble” materials which are closely related to each other near the top of the Galvanic Scale of corrosion resistance. Unlike pairs of widely dissimilar metals, they will both exhibit long life in most ‘hot’ soil environments. Can be used on PVC (C900+ Series), Ductile, Iron, Steel, HDPE and AC pipe.
MATERIAL SPECIFICATIONS:
Saddle Body: Cast Bronze.
Gasket: Nitrile (NBR) Rubber.
Saddle Straps: T304 Stainless Steel, rolled threads,
fully passivated*.
Fasteners: 1/2” NC T304 Stainless Steel.
Nuts coated with anti-galling compound.
Torque: 45 ft. lbs.
Working pressures: 4-12″ – 300PSI
14-24″ 150 PSI
