SERVICE SADDLES

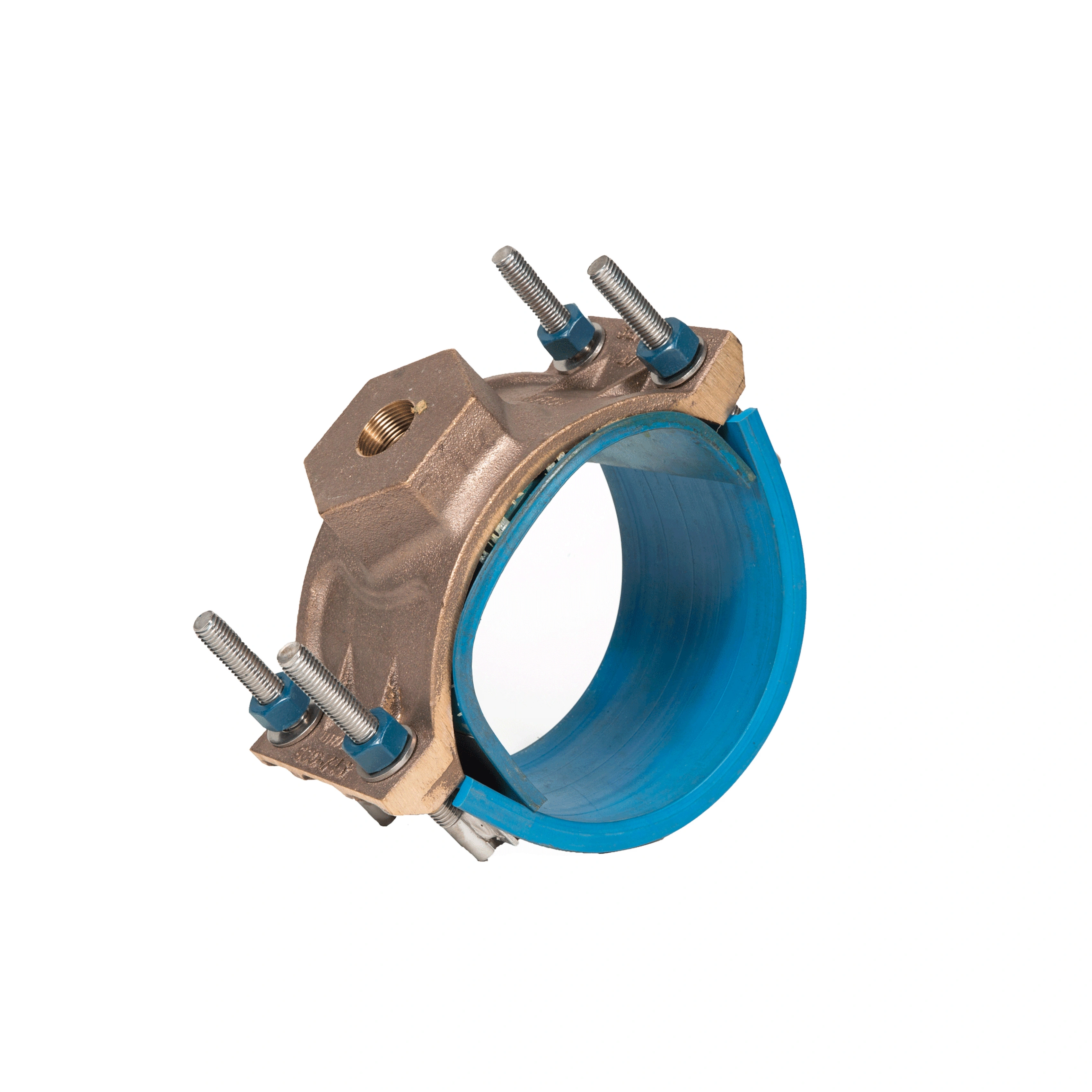

2786 Isolating Service Saddle
PRODUCT OVERVIEW
2786
Service Saddles
ROBAR 2786 Isolating Saddles are used to electrically isolate an outlet or service line from a main distribution line. Primarily used in cathodically protected systems or to separate dissimilar metals. Waterworks Bronze and passivated T304 Stainless Steel are “noble” materials which are closely related to each other near the top of the Galvanic Scale of corrosion resistance. Unlike pairs of widely dissimilar metals, they will both exhibit long life in most ‘hot’ soil environments.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
2786 Isolating Service Saddle
ROBAR 2786 Isolating Saddles are used to electrically isolate an outlet or service line from a main distribution line. Primarily used in cathodically protected systems or to separate dissimilar metals. Waterworks Bronze and passivated T304 Stainless Steel are “noble” materials which are closely related to each other near the top of the Galvanic Scale of corrosion resistance. Unlike pairs of widely dissimilar metals, they will both exhibit long life in most ‘hot’ soil environments.
MATERIAL SPECIFICATIONS:
Saddle Body: Cast Bronze
Gaskets: Nitrile (NBR) Rubber.
Body and Strap: NBR (Nitrile) Ric-2 “Robar” Blue Rubber
Strap & Armor: T304 Stainless Steel, fully passivated*
Fasteners: 1/2” NC T304 Stainless Steel – Rolled threads
Nuts coated with anti-galling compound
Torque: 45 ft. lbs.
Working pressures : 150PSI
