SERVICE SADDLES

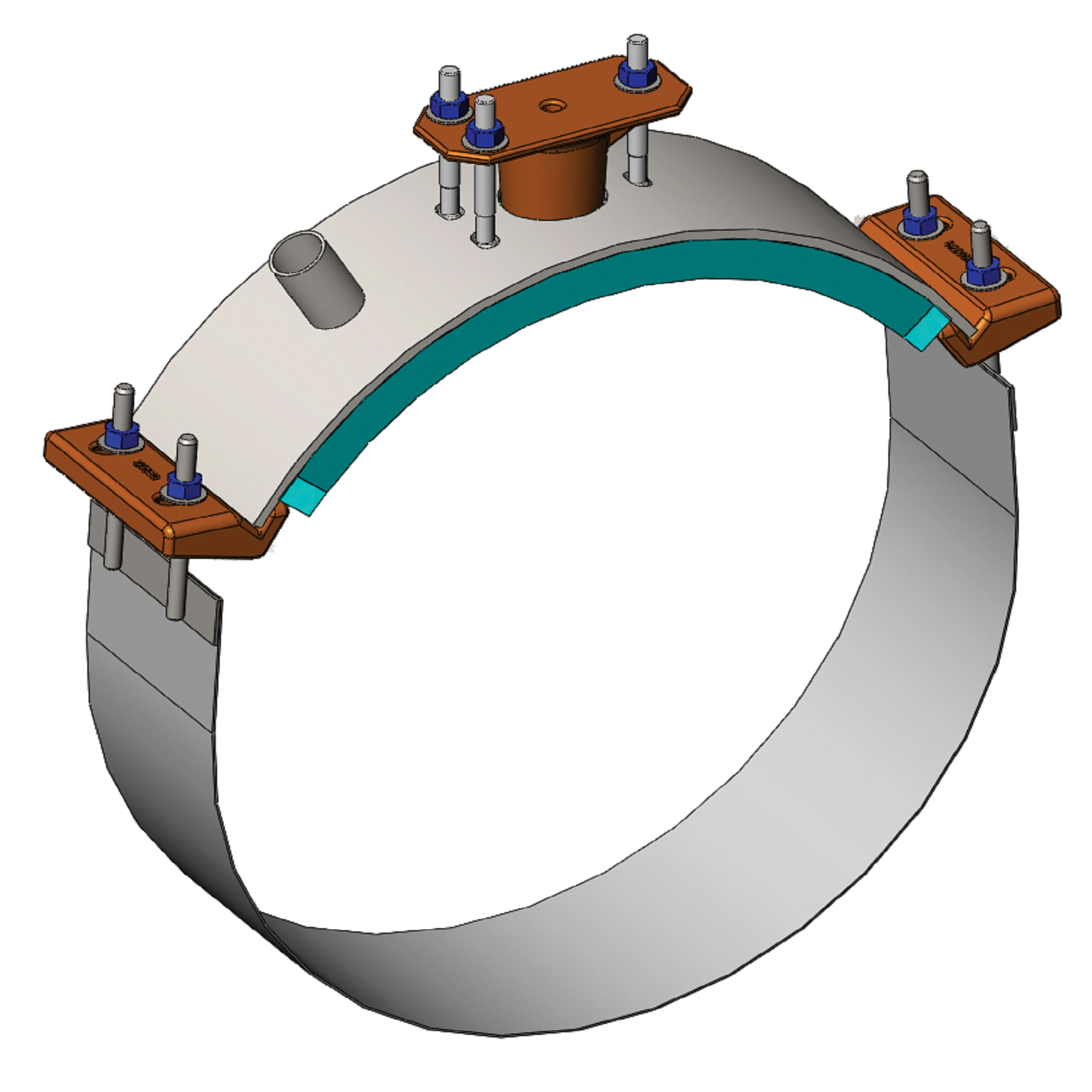

2996 Concrete Cylinder Service Saddle
ROBAR2996
3400 × 3400
PRODUCT OVERVIEW
2996
Service Saddles
ROBAR 2996 Concrete Cylinder Service Saddle are used to take a service outlet off a transmission line or distribution line.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
2996 Concrete Cylinder Service Saddle
ROBAR 2996 Concrete Cylinder Service Saddle are used to take a service outlet off a transmission line or distribution line.
Material Specification:
Top Plate: ASTM A36
Outlet: Cast Ductile Iron
Strap: T-304L Stainless Steel, fully passivated
Fasteners: 5/8″ NC T-304L Stainless Steel studs, rolled threads, nuts coated
Coating: Corrosion Protective Epoxy per AWWA C213
