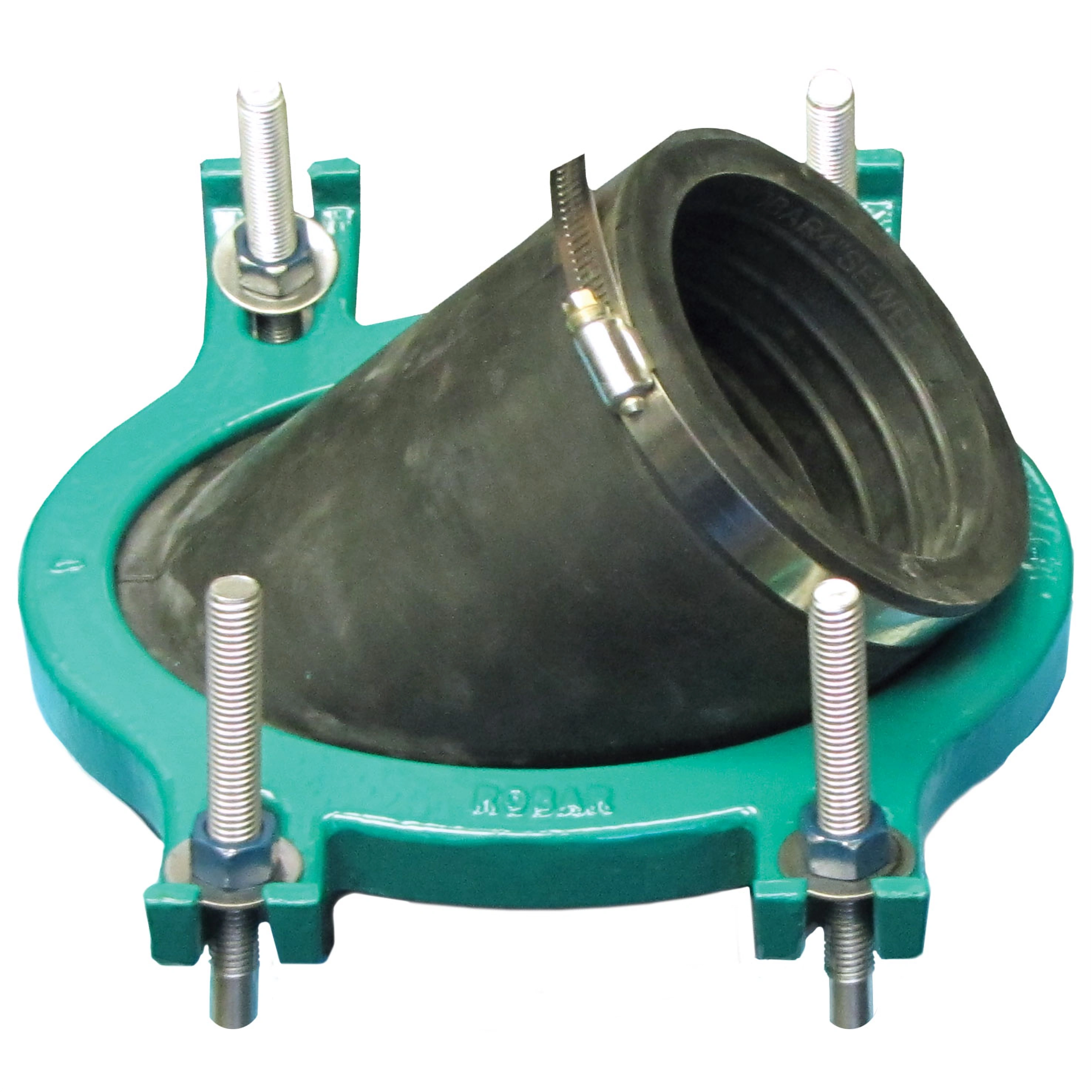

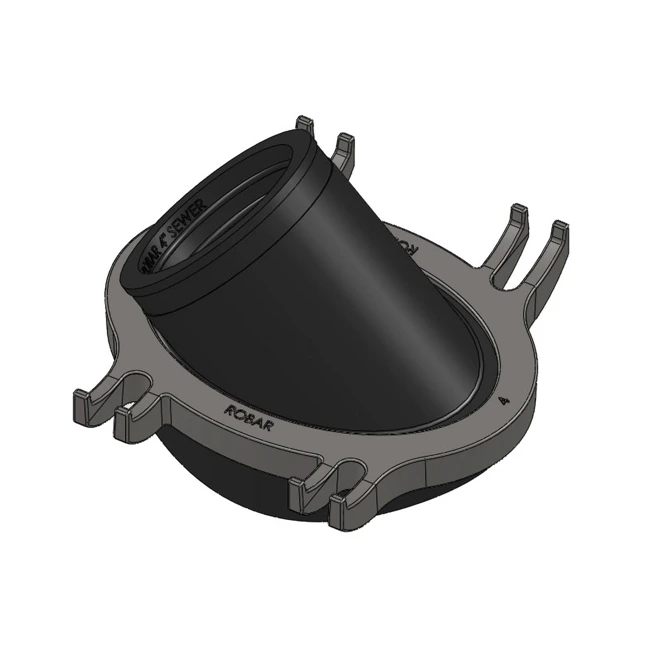

3506 Sewer Saddle
PRODUCT OVERVIEW
3506
Service Saddles

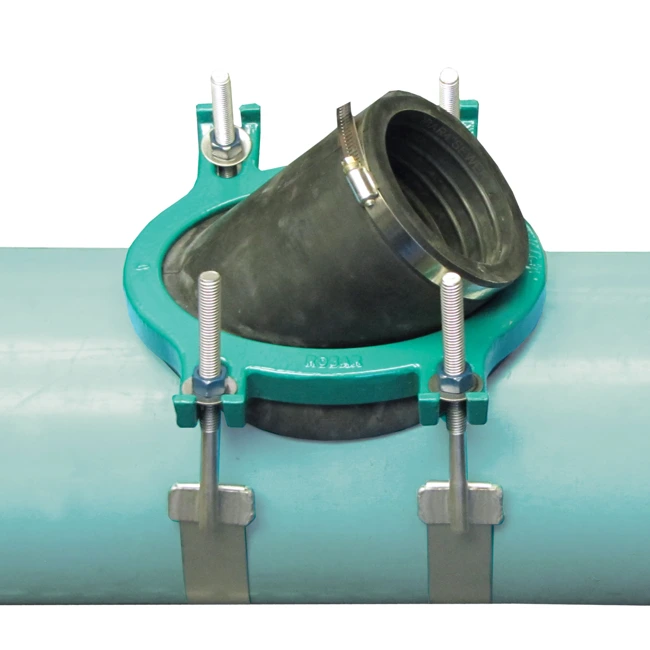

The ROBAR Sewer Saddle allows a 4” inlet branch to be taken off the main sewer line at a 45 degree angle. Available through 48” nominal sizes.
DRAWINGS & MEASUREMENTS
The original specification, right here.
Check pipe sizes, working ranges and drawing dimensions on the manufacturer's sheet. Dimensions vary by size and configuration.
PRODUCT RESOURCES
Details you can work with.
SPECIFICATIONS & APPLICATION
3506 Sewer Saddle
The ROBAR Sewer Saddle allows a 4” inlet branch to be taken off the main sewer line at a 45 degree angle. Available through 48” nominal sizes.
MATERIAL SPECIFICATIONS:
Body: Ductile Iron.
Cast Strap: 1 1/2” wide T-304 Stainless Steel, 24 gauge.
Fully passivated.
Bolts & Nuts: T-304 Stainless Steel.
Nuts coated with anti-galling compound.
Gasket: NBR (Buna N).
Coating: 3406 – Two coats of enamel.
3506 – Corrosion Protective epoxy coated.
